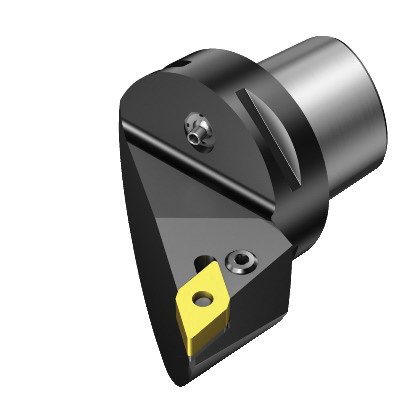

Sandvik Coromant 5726870 T-Max® P Turning Cutting Unit, 1.7716 in, 2.5196 in OAL, Left Hand, DNMG 110408 Insert
Modular Turning/Profiling Cutting Heads
1237688
MFG #: 5726870
Sandvik Coromant
337.65000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.7716 in Head Length/Projection, 2.5196 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
- Features
Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
20 life cycle state |
0 deg body workpiece side |
Axial concentric and radial coolant entry |
10 bar coolant |
Lever hole clamping |
Decentral coolant exit with nozzles, adjustable |
32 mm Dia connection |
93 deg cutting edge |
-7 deg inclination |
27 deg ramping |
1.2 Nm torque |
3/8 in insert seat size |
45 mm maximum overhang |
-3 deg lead |
-6 deg rake |
Bolt and segment clamping adaptive interface |
ANSI Code: C3-PDJNL-22045-11 |
ISO Code: C3-PDJNL-22045-11 |
