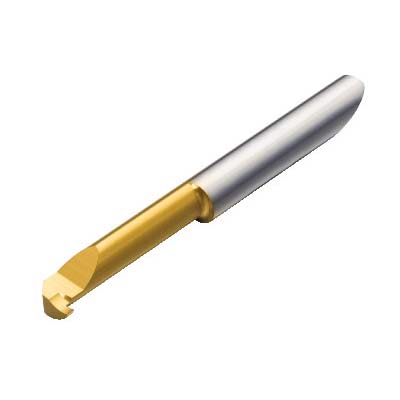

Sandvik Coromant 5726820 CoroTurn® XS Grooving Tool/Insert, CXS-07G157-7235R 1025, CXS-xxG Insert, 0.0618 in W Cutting, 1025, CXS-07G157-7235R 1025
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5726820 CoroTurn® XS Grooving Tool/Insert, CXS-07G157-7235R 1025, CXS-xxG Insert, 0.0618 in W Cutting, 1025, CXS-07G157-7235R 1025
SKU1241929
MFGR #5726820
Your Cost: $87.93/ea
List: Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0618 in Cutting Width, 0.0984 in Maximum Depth of Cut, 0 deg Lead Angle, 2.3732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-07G157-7235R 1025, ISO Code: CXS-07G157-7235R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/P/S
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0618 in Cutting Width, 0.0984 in Maximum Depth of Cut, 0 deg Lead Angle, 2.3732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-07G157-7235R 1025, ISO Code: CXS-07G157-7235R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/P/S
Alternate Catalog Number CXS-07G157-7235R 1025 Catalog Number 5726820 Country of Origin GB Finish PVD TiAlN/TiN Coated Groove Width 1.57 mm Gross Weight Per Pack 6.2400 lb Item Group 325 Material Grade 1025 Maximum Hole Depth 35 mm Minimum Hole Diameter 7.2 mm Overall Length 60.28 mm Projection 38 mm Series CoroTurn® XS Shank Diameter 7 mm UPC 11 69826226674 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Material Solid Carbide Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool 20 life cycle state 90 deg body workpiece side 0.04 mm W chamfer Without coolant entry 0 mm W cutting lower tolerance 0.05 mm W cutting upper tolerance No coolant exit 7 mm Dia connection 7.2 mm Dia minimum bore 90 deg cutting edge 45 deg corner chamfer 57.25 mm L functional 35 mm L usable 34.215 mm L to cutting item reference point 38 mm maximum overhang 2 deg relief 4.25 mm W body 3.45 mm W functional 1 edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-07G157-7235R 1025 |
| Catalog Number | 5726820 |
| Country of Origin | GB |
| Finish | PVD TiAlN/TiN Coated |
| Groove Width | 1.57 mm |
| Gross Weight Per Pack | 6.2400 lb |
| Item Group | 325 |
| Material Grade | 1025 |
| Maximum Hole Depth | 35 mm |
| Minimum Hole Diameter | 7.2 mm |
| Overall Length | 60.28 mm |
| Projection | 38 mm |
| Series | CoroTurn® XS |
| Shank Diameter | 7 mm |
| UPC 11 | 69826226674 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Material | Solid Carbide |
| Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 7 mm Dia connection |
| 7.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 57.25 mm L functional |
| 35 mm L usable |
| 34.215 mm L to cutting item reference point |
| 38 mm maximum overhang |
| 2 deg relief |
| 4.25 mm W body |
| 3.45 mm W functional |
| 1 edge |
