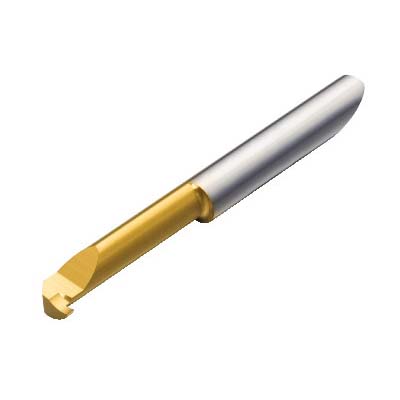

| Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 7 mm Dia connection |
| 7.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 47.25 mm L functional |
| 25 mm L usable |
| 24.25 mm L to cutting item reference point |
| 28 mm maximum overhang |
| 2 deg relief |
| 4.25 mm W body |
| 3.45 mm W functional |
| 1 edge |
