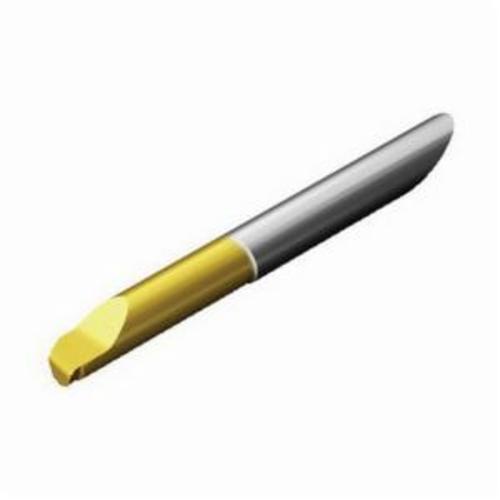

Sandvik Coromant 5726657 CoroTurn® XS Turning Tool, CXS-06T098-20-6215R 7015, Cylindrical Bar, CXS-xxT098..R/L Insert, 7015
Custom_Product_Images_Illustration
Sandvik Coromant 5726657 CoroTurn® XS Turning Tool, CXS-06T098-20-6215R 7015, Cylindrical Bar, CXS-xxT098..R/L Insert, 7015
SKU1242441
MFGR #5726657
Your Cost: $122.74/ea
Sandvik Coromant Turning Tool, Series: CoroTurn® XS, CXS-xxT098..R/L Insert, Cylindrical Bar, 0.5 mm Maximum Depth of Cut, 1.6712 in Length, Flat Top Chipbreaker, 0.0078 in Corner Radius, Manufacturer's Grade: 7015, ANSI Code: CXS-06T098-20-6215R 7015, ISO Code: CXS-06T098-20-6215R 7015, Right Hand, Carbide, PVD Coated, Material Grade: H
Sandvik Coromant Turning Tool, Series: CoroTurn® XS, CXS-xxT098..R/L Insert, Cylindrical Bar, 0.5 mm Maximum Depth of Cut, 1.6712 in Length, Flat Top Chipbreaker, 0.0078 in Corner Radius, Manufacturer's Grade: 7015, ANSI Code: CXS-06T098-20-6215R 7015, ISO Code: CXS-06T098-20-6215R 7015, Right Hand, Carbide, PVD Coated, Material Grade: H
Catalog Number 5726657 Country of Origin GB Finish Uncoated Groove Width 0.1161 in Gross Weight Per Pack 4.8500 lb Maximum Hole Depth 0.591 in Minimum Hole Diameter 0.244 in Overall Length 1.67126 in Projection 0.709 in Series CoroTurn® XS Shank Diameter 0.236 in UPC 11 69826248571 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Material Solid Carbide Material Grade H Optimized for machining of small high quality features High precision and repeatability Reliable and easy-to-use clamping system Locking precision - solid carbide boring bar fits precisely into the adaptor with a locating pin, rigid clamping with increased stability with collet clamped adaptors 0 deg orthogonal rake 98 deg cutting edge 0 deg inclination 37.25 mm L functional 15 mm L usable 18 mm overhang -8 deg lead 17 deg ramping 5.25 mm W body 2.95 mm W functional Cylindrical screw down mounting 20 life cycle state Solid carbide boring bar locates precisely into the adaptor with a locating pin Rigid clamping with increased stability by new collet clamping Longer tool life by minimized micro vibrations Clamping nut ensures easy change of cutting too
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5726657 |
| Country of Origin | GB |
| Finish | Uncoated |
| Groove Width | 0.1161 in |
| Gross Weight Per Pack | 4.8500 lb |
| Maximum Hole Depth | 0.591 in |
| Minimum Hole Diameter | 0.244 in |
| Overall Length | 1.67126 in |
| Projection | 0.709 in |
| Series | CoroTurn® XS |
| Shank Diameter | 0.236 in |
| UPC 11 | 69826248571 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Material | Solid Carbide |
| Material Grade | H |
| Optimized for machining of small high quality features |
| High precision and repeatability |
| Reliable and easy-to-use clamping system |
| Locking precision - solid carbide boring bar fits precisely into the adaptor with a locating pin, rigid clamping with increased stability with collet clamped adaptors |
| 0 deg orthogonal rake |
| 98 deg cutting edge |
| 0 deg inclination |
| 37.25 mm L functional |
| 15 mm L usable |
| 18 mm overhang |
| -8 deg lead |
| 17 deg ramping |
| 5.25 mm W body |
| 2.95 mm W functional |
| Cylindrical screw down mounting |
| 20 life cycle state |
| Solid carbide boring bar locates precisely into the adaptor with a locating pin |
| Rigid clamping with increased stability by new collet clamping |
| Longer tool life by minimized micro vibrations |
| Clamping nut ensures easy change of cutting too |
