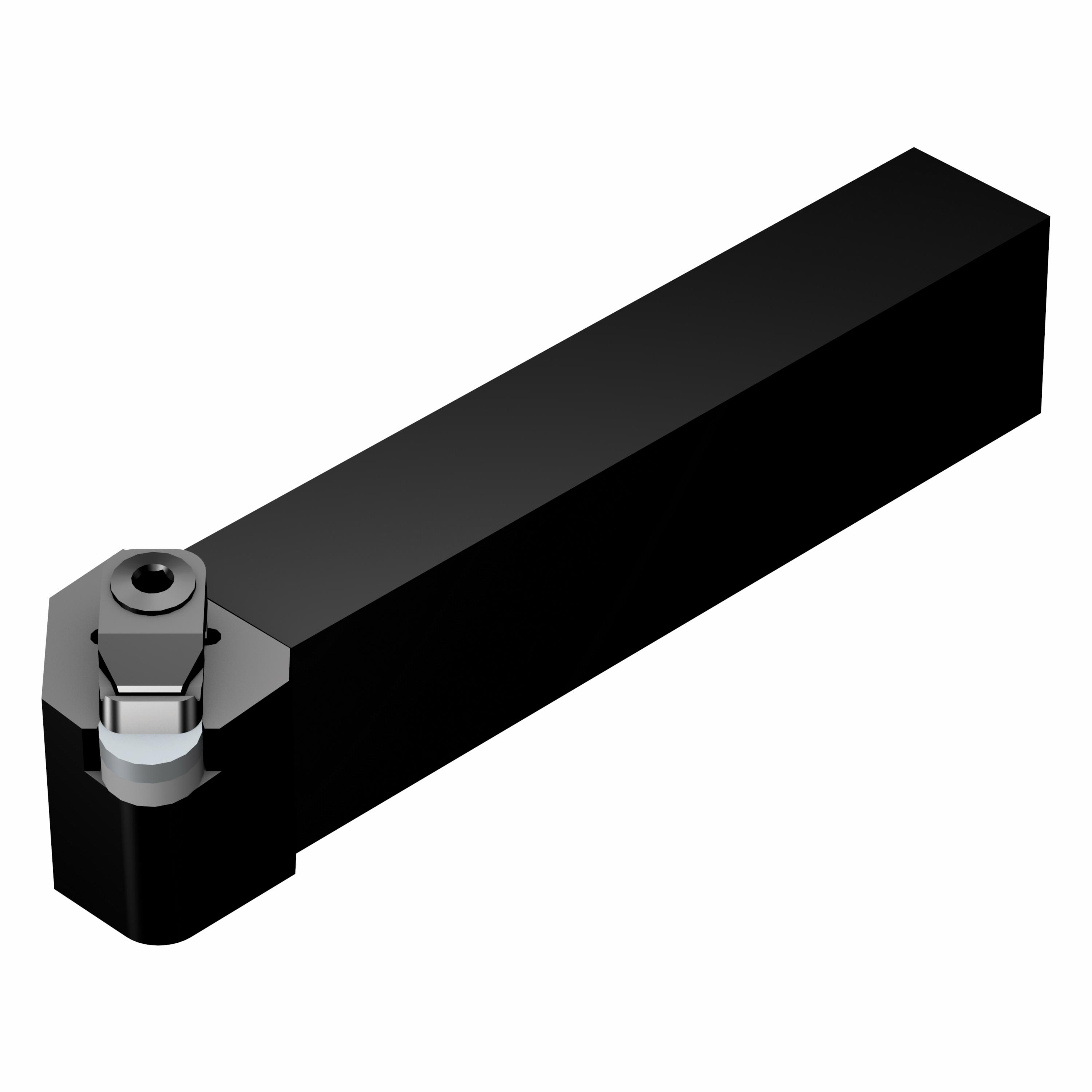

Sandvik Coromant 5725975 T-Max Shank Tool, CRSNR/L Tool Holder, RNGN 120700 (MIIDM) and RNG 45 (MIIDN) Insert
Indexable Turning Tool Holders
1242323
MFG #: 5725975
Sandvik Coromant
234.48000
/ ea
Sandvik Coromant Shank Tool, Series: T-Max, CRSNR/L Tool Holder, 5.9055 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: RNGN 120700 (MIIDM) and RNG 45 (MIIDN), 1/2 Insert Seat, Right Hand Cutting, ANSI Code: CRSNR 2525M 12-ID, ISO Code: CRSNR 2525M 12-ID, -6 deg Rake, Steel
- Features
0 deg body machine side |
0 deg body workpiece side |
Without coolant entry |
No coolant exit |
-6 deg inclination |
12 deg maximum ramping |
20 life cycle state |
28 mm maximum overhang |
7.5 Nm torque |
32 mm W functional |
Top clamping for flat surface |
R - Round insert |
ANSI Code: CRSNR 2525M 12-ID |
ISO Code: CRSNR 2525M 12-ID |
