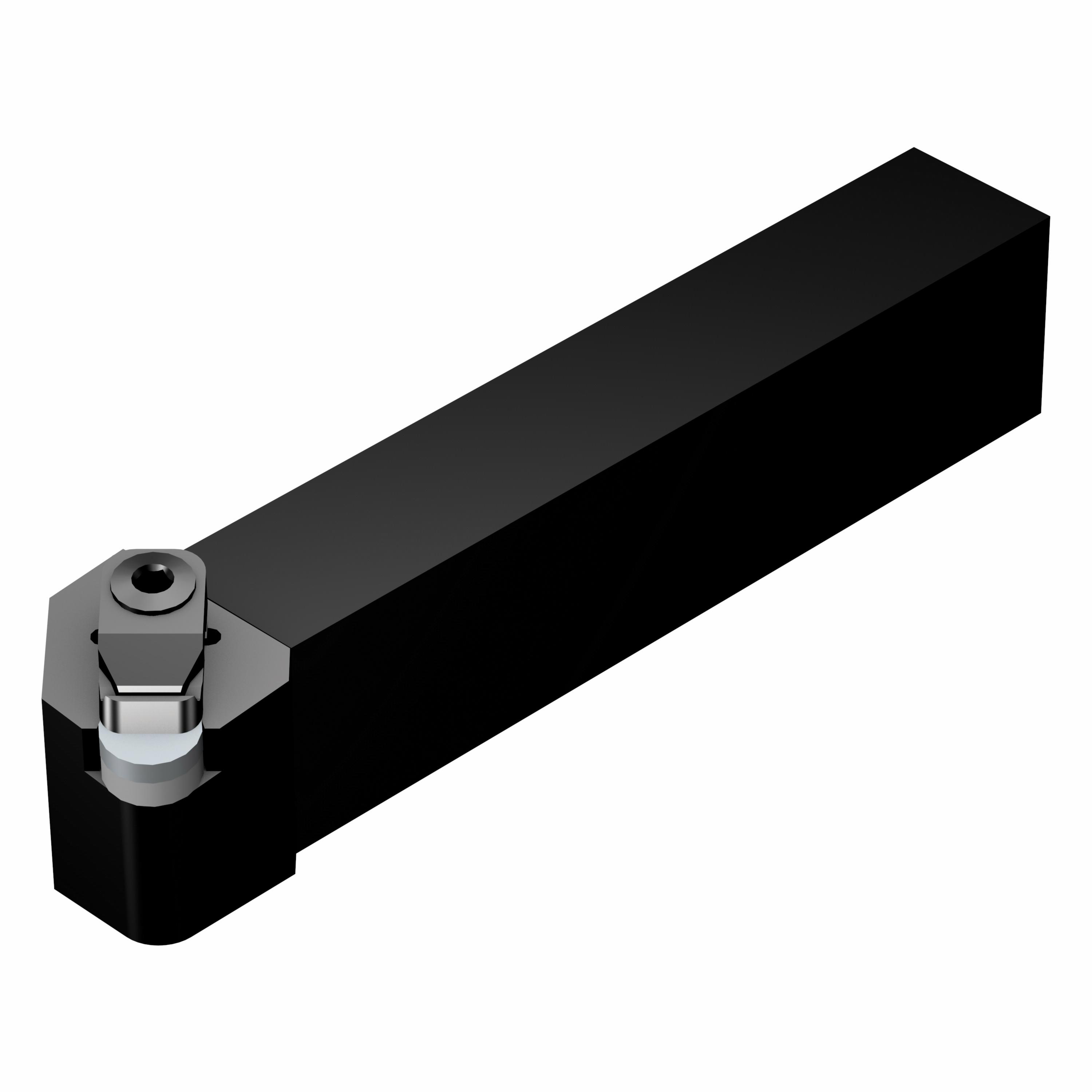

Sandvik Coromant 5725912 T-Max Shank Tool, CRSNR/L Tool Holder, RNGN 090300 (MIIDM) and RNG 32 (MIIDN) Insert
Indexable Turning Tool Holders
1242400
MFG #: 5725912
Sandvik Coromant
234.48000
/ ea
Sandvik Coromant Shank Tool, Series: T-Max, CRSNR/L Tool Holder, 5.9055 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: RNGN 090300 (MIIDM) and RNG 32 (MIIDN), 3/8 Insert Seat, Left Hand Cutting, ANSI Code: CRSNL 2525M 09-ID, ISO Code: CRSNL 2525M 09-ID, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| -6 deg inclination |
| 12 deg maximum ramping |
| 20 life cycle state |
| 28 mm maximum overhang |
| 7.5 Nm torque |
| 32 mm W functional |
| Top clamping for flat surface |
| R - Round insert |
| ANSI Code: CRSNL 2525M 09-ID |
| ISO Code: CRSNL 2525M 09-ID |
