SIGNAL® 983000604 Type FPLR Shielded Fire Alarm Cable, 300 VAC, (2) 18 AWG Bare Copper Conductors, 1000 ft Reel L
Fire Alarm Cables
793
MFG #: 983000604
Coleman Cable
153.01000
/ ft
Marketed under the signal ® brand name, Coleman Cable manufacturers one of the most comprehensive security, home technology and datacom cable packages available today. Our product offering provides cable solutions for virtually every security and home technology application. Coleman Cable's technical expertise and commitment to innovation ensure the most advanced and highest quality security, home technology and datacom cable in the market. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
- Features
| 0.008 in insulation thickness |
| 0.056 in insulated nominal conductor diameter |
| UL 1666 riser flame test rating |
| 4 in nominal lay length |
| 63 Pf/ft capacitance between conductors at 1 kHz |
| Black, red insulation colors |

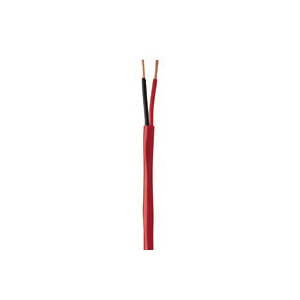

| This cable consists of two bare copper insulated conductors with an overall shield with a drain |
| Aluminum/mylar shield |
| 24 AWG tinned copper drain |
| 0.014 in insulation thickness |
| 6.32 Ohm/1 m at 20 deg C DC resistance per conductor |
| Overall shielded(OAS) |
