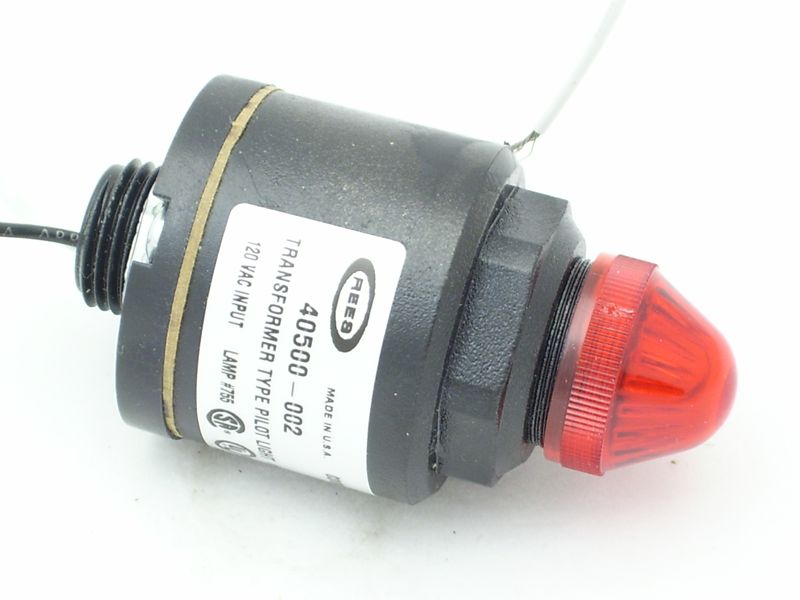

Rees; Pilot Light; Standard, Transformer, Non-Press-To-Test; Voltage Rating: 120 VAC; Finish: Chrome Plated Housing; Mounting: 1/2 IN NPT Hole Diameter; Operating Temperature: 0 To +55 DEG C; Environmental Conditions: -40 To +85 DEG C Storage Temperature; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC At Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC At Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI/NEMA ICS 2-1988; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP; Inrush Current: 60, 30, 15, 12 AMP; Material: Polycarbonate Body, Zinc Die Cast Housing; Nema: 12/13; Ip: 65; Cable Size: 14/2 AWG Stranded; Frequency Rating: 60 HZ; Lamp Type/number: 755; Lamp Design Volts: 6 V; Lamp Design Amps: 150 MILAMP; Includes: Lens; Lens Color: Red
- Features
| Features: The Pilot Light Body Is Made From Polycarbonate And Is Sonically Welded Together; The Chrome Plated Zinc Die Cast Housing Will Mount In A Standard 30.5 MM Hole; Each Captive Terminal On The Terminal Block Will Accept (2) # 14 AWG Stranded Wires; NEMA 12/13, IP 65; These Lights Are Generally Found On Machine Control Panels As Circuit/Function Indicators; The NPT Mount Style Compliments The Self Contained Cable Switches And Is Used Extensively In That Function; This Pilot Light Is Supplied With A Red Lens, For Additional Colors, Replacement Lamps And Lenses Can Be Found In The Accessories Section For 30.5 MM Devices; Electrical Ratings: Heavy Duty A600/N300, Listed Under UL 508 File # E 58589, Certified Under CSA C22.2 File # LR 3648; Environmental Temperature Range: Operating: +32 ° F To +131 ° F (0 ° C To +55 ° C), Storage: -40 ° F To +185 DEG |
