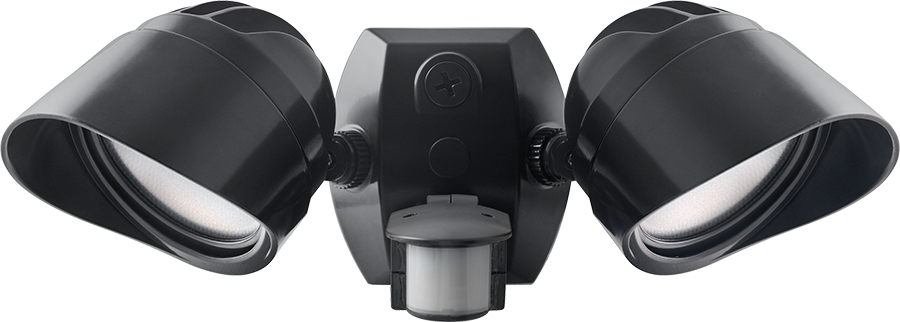

RAB Lighting SMSBULLET2X12NA Flood Light, LED Lamp, 26 W Fixture, 120 VAC, Polyester Coated Housing
Flood Light Fixtures
830585
MFG #: SMSBULLET2X12NA
RAB
329.31000
/ ea
RAB Flood Light, 120 VAC, 26 W Fixture, 0.22 A, LED Lamp, 24 W Lamp, 100000 hr Average Life, Bronze Light, 4000 K Color, 84 CRI, Micro-Prismatic Glass Lens, 2528 Lumens, Wall Mount, Aluminum Housing, Polyester Coated Housing, 6 in H x 14-1/2 in W x 6-3/4 in D
- Brochure URL - led-bullet-flood-motion-sensor.php(Brochure URL)
- http://www.rabweb.com(Seller Home Page URL)
- Install Instructions 1 URL - 11274_2B3O1MZ7F5CTURN6.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11274_BJI8EHU942PT3G7O.pdf(Spec Sheet URL)
- Tech Drawing URL - 11274_ID-DRW-v1-led_bullet_flood_12_watt_adjustable_dual_heads_dimension.png(Tech Drawing URL)
- Warranty URL - 11274_ID-WAR-v2-Website_Terms_of_Use.pdf(Warranty URL)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Applications
- Features
| OUTDOOR |
| Two adjustable 12W LED floodlights |
| Equivalent to 2 x 75 W BR30/halogen/wide floods |
| Sensor with 180 deg detection pattern at up to 30 ft |
| Photo control keeps lights off during the daytime |
| Microprismatic diffusion lens optimizes light output without glare |
| RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the department of energy lighting facts label |
| Multi-chip, high output, long-life LEDs |
| 100000 hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period |
| Semi-specular, vacuum metalized polycarbonate reflector |
| Microprismatic diffusion lens for smooth and even light distribution lens |
| Heavy duty mounting arm with O ring seal and stainless steel screws |
| High temperature silicone gaskets |
| Polyester powder coatings are formulated for high-durability and long lasting color, and contains no VOC or toxic heavy metals |
| Mercury and UV free, polyester powder coat finish formulated without the use of VOC or toxic heavy metals |
| Sensor indicator LED glows red day & night for on guard deterrence |
| Auto mode starts after 4 minutes of testing, no adjustment needed |
| Time, ambient light & sensitivity, 60 Hz frequency |
