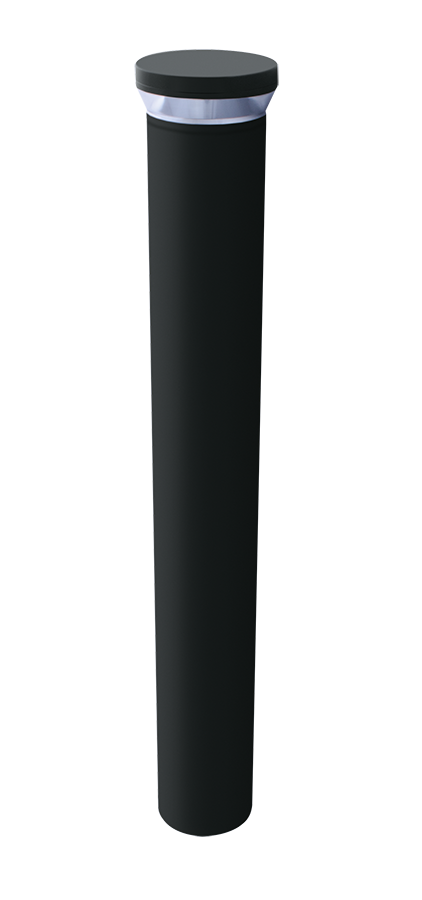

RAB Lighting BLEDR18 Round Bollard Light, LED Lamp, 23 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
Custom_Product_Images_Illustration
RAB Lighting BLEDR18 Round Bollard Light, LED Lamp, 23 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
SKU832459
MFGR #BLEDR18
Your Cost: $933.87/ea
RAB Bollard Light, Round, 120 to 277 VAC, 23 W Fixture, 0.24 A, LED Lamp, 18 W Lamp, 100000 hr Average Life, Cool Bronze Light, 5000 K Color, 71 CRI, Polycarbonate Glass Lens, 1242 Lumens, Concrete Pad Mount, Aluminum Housing, Polyester Powder Coated Housing, 6-1/2 in L x 6-1/2 in W x 42 in H
RAB Bollard Light, Round, 120 to 277 VAC, 23 W Fixture, 0.24 A, LED Lamp, 18 W Lamp, 100000 hr Average Life, Cool Bronze Light, 5000 K Color, 71 CRI, Polycarbonate Glass Lens, 1242 Lumens, Concrete Pad Mount, Aluminum Housing, Polyester Powder Coated Housing, 6-1/2 in L x 6-1/2 in W x 42 in H
Alternate Catalog Number 00019813103129 Amperage Rating 0.24/0.18/0.15/0.12 A Application Outdoor ARRA Compliant X Average Life 100000 hr Ballast Type Class 2 Constant Current Buy American Compliant C Catalog Number BLEDR18 Color Rendering Index [CRI] 74 Color Temperature 5000 K Country of Origin CN Currency USD Dimensions 6-1/2 in L x 6-1/2 in W x 42 in H Environmental Conditions Suitable for Wet locations EU RoHS Indicator N Fixture Finish Bronze Fixture Material Die-cast aluminum with extruded aluminum post Gross Volume Per Pack 1.92 Gross Volume per Pack Metric 0.05 Gross Weight Per Pack 18.6000 lb Gross Weight per Pack Metric 8.44 Gross Weight UOM Metric kg Height 8.50 in Height [Metric] 21.5900 cm Housing Material Die Cast Aluminum Lamp Wattage 18 W Length 35.50 in Length [Metric] 90.1700 cm Lens Type Polycarbonate Glass Light Color Cool White Lighting Technology 270 deg Lighting Pattern Lumens 1242 Lumens Mounting Type Bolt Series BLED Standard Durable construction and frosted vandal-resistant polycarbonate lens Standards ANSI C78.377UL ListedIESNA LM-79/80TAA Compliant Type 90 deg Round UNSPSC 39111605 UPC 11 19813103129 UPC 12 019813103129 Wattage 18 W Width 8.50 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 23 W Housing Finish Bronze/Polyester Powder Coated Lamp Type LED Voltage Rating 120/208/240/277 VAC OUTDOOR Round Bollard Outdoor base mount design for super sturdy installation Durable construction and vandal-resistant polycarbonate lens 3 configurations to provide 360 deg, 270 deg, 180 deg or 90 deg lighting pattern Precision engineered optics deliver maximum downward lighting without glare Clear, vandal-resistant polycarbonate lens Suitable for use in 104 deg F ambient temperature High temperature silicone gaskets seal out moisture Four anchor bolts provided for concrete pad mounting Internal base support has leveling screws Constant current bulb spacing 0.24 A at 120 VAC, 0.18 A at 208 VAC, 0.15 A at 240 VAC, 0.12 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 00019813103129 |
| Amperage Rating | 0.24/0.18/0.15/0.12 A |
| Application | Outdoor |
| ARRA Compliant | X |
| Average Life | 100000 hr |
| Ballast Type | Class 2 Constant Current |
| Buy American Compliant | C |
| Catalog Number | BLEDR18 |
| Color Rendering Index [CRI] | 74 |
| Color Temperature | 5000 K |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 6-1/2 in L x 6-1/2 in W x 42 in H |
| Environmental Conditions | Suitable for Wet locations |
| EU RoHS Indicator | N |
| Fixture Finish | Bronze |
| Fixture Material | Die-cast aluminum with extruded aluminum post |
| Gross Volume Per Pack | 1.92 |
| Gross Volume per Pack Metric | 0.05 |
| Gross Weight Per Pack | 18.6000 lb |
| Gross Weight per Pack Metric | 8.44 |
| Gross Weight UOM Metric | kg |
| Height | 8.50 in |
| Height [Metric] | 21.5900 cm |
| Housing Material | Die Cast Aluminum |
| Lamp Wattage | 18 W |
| Length | 35.50 in |
| Length [Metric] | 90.1700 cm |
| Lens Type | Polycarbonate Glass |
| Light Color | Cool White |
| Lighting Technology | 270 deg Lighting Pattern |
| Lumens | 1242 Lumens |
| Mounting Type | Bolt |
| Series | BLED |
| Standard | Durable construction and frosted vandal-resistant polycarbonate lens |
| Standards | ANSI C78.377UL ListedIESNA LM-79/80TAA Compliant |
| Type | 90 deg Round |
| UNSPSC | 39111605 |
| UPC 11 | 19813103129 |
| UPC 12 | 019813103129 |
| Wattage | 18 W |
| Width | 8.50 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 23 W |
| Housing Finish | Bronze/Polyester Powder Coated |
| Lamp Type | LED |
| Voltage Rating | 120/208/240/277 VAC |
| OUTDOOR |
| Round Bollard |
| Outdoor base mount design for super sturdy installation |
| Durable construction and vandal-resistant polycarbonate lens |
| 3 configurations to provide 360 deg, 270 deg, 180 deg or 90 deg lighting pattern |
| Precision engineered optics deliver maximum downward lighting without glare |
| Clear, vandal-resistant polycarbonate lens |
| Suitable for use in 104 deg F ambient temperature |
| High temperature silicone gaskets seal out moisture |
| Four anchor bolts provided for concrete pad mounting |
| Internal base support has leveling screws |
| Constant current bulb spacing |
| 0.24 A at 120 VAC, 0.18 A at 208 VAC, 0.15 A at 240 VAC, 0.12 A at 277 VAC |
