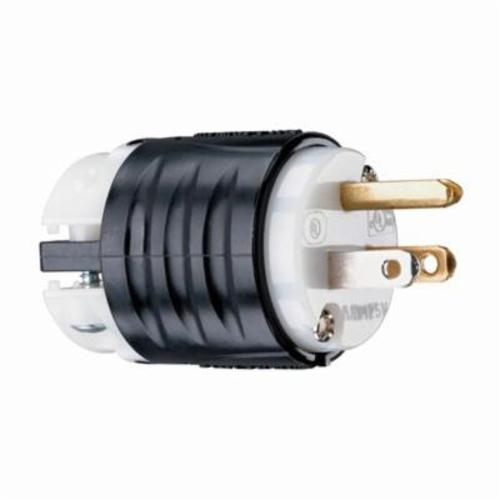

Pass & Seymour® PS5266-X Extra Hard Use Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Straight Blade Plugs
266020
MFG #: PS5266-X
Pass & Seymour®
16.79000
/ ea
Pass & Seymour® Straight Blade Plug, Extra Hard Use, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P, 0.23 to 0.69 in Cord Dia, -40 to 75 deg C, Grounding Wire Terminal, Nylon, Black/White, 1.516 in H x 1.516 in W x 1.752 in D
- Catalog URL - IDW_DOCUMENT_8f949e88cd1c32594192a8f6b2e7b37a17cf060d149285dc8182e4cb816cf3bb.pdf(Catalog URL)
- http://www.passandseymour.com(Seller Home Page URL)
- Install Instructions URL - PS5266X.aspx#res(Install Instructions URL)
- Spec Sheet URL - PS5266X.pdf(Spec Sheet URL)
- Warranty URL - passandseymour.aspx(Warranty URL)
- Features
Rugged 2pc cord grip, internal dust sheild & tri-drive assembly |
Unit arrives completely ready-to-wire, cuts installation time significantly |
Nylon housing provides impact and chemical resistance |
Rugged two-piece cord-grip provides more uniform cord retention |
Internal dust shield keeps terminals free of contaminants |
Tri-drive assembly screws standard on all specification grade plugs and connectors |
3-wire terminals located on the same plane, allows for quick wire termination from any angle |
Heavy duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity |
Cord-grip screws recessed to protect installer against screwdriver head slippage |
1500 VAC minimum dielectric withstand voltage |
30 deg C maximum, 50 cyclest 150% rated current temperature rise |
