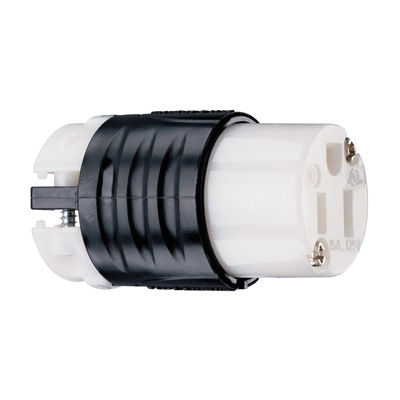

Pass & Seymour® Maxgrip® PS5269XBK Extra Hard Use (EHU) Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Straight Blade Connectors
1041927
MFG #: PS5269XBK
Pass & Seymour®
26.52000
/ ea
Pass & Seymour® Maxgrip® Straight Blade Connector, Extra Hard Use (EHU), 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P, Specification Grade, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Nylon, Black, 1.516 in H x 1.516 in W x 2.638 in D
- http://www.passandseymour.com(Seller Home Page URL)
- Install Instructions URL - PS5269XBK.aspx#res(Install Instructions URL)
- Spec Sheet 1 URL - Pass_Seymour_PS5269XBK_Data_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet 2 URL - Pass_Seymour_PS5269XBK_Data_Sheet_2.pdf(Spec Sheet 2 URL)
- Spec Sheet URL - PS5269XBK.pdf(Spec Sheet URL)
- Warranty URL - passandseymour.aspx(Warranty URL)
- Applications
- Features
| Commercial |
| Extra hard use, nylon housing, internal dust shield, rugged 2piece cord grip |
| Unit arrives completely ready-to-wire, cuts installation time significantly |
| Nylon housing provides impact and chemical resistance |
| Rugged two-piece cord grip provides more uniform cord retention |
| Internal dust shield keeps terminals free of contaminants |
| Tri-drive assembly screws are standard on all specification grade plugs and connectors |
| All 3-wire terminals located on the same plane, allows for quick wire termination from any angle |
| Heavy duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity |
| Cord grip screws recessed to protect installer against screwdriver head slippage |
