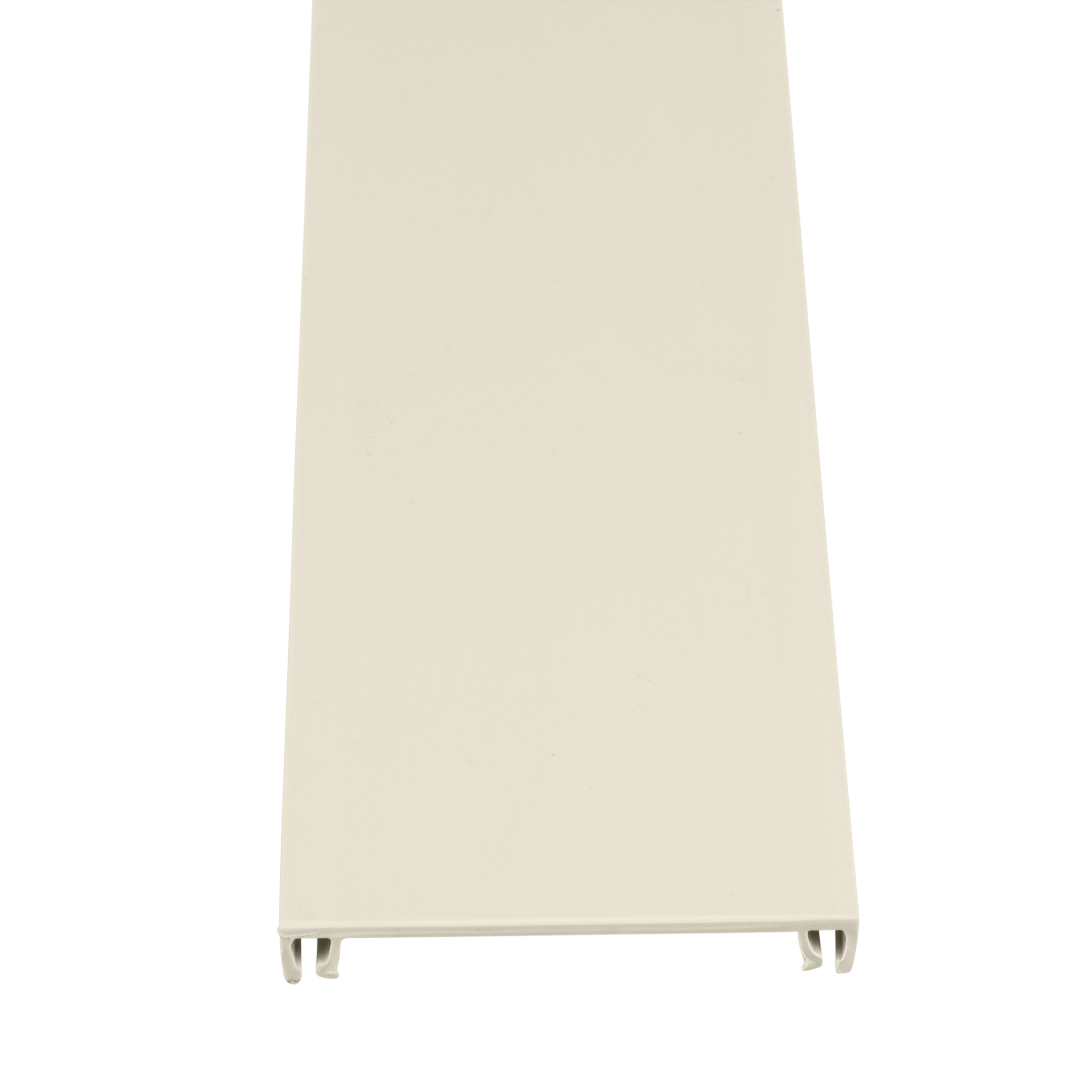

Panduit® Pan-Way® T70CIW6 Raceway Cover, 6 ft L x 2.76 in W x 0.36 in H, PVC, White

Custom_Product_Images_Illustration

Panduit® Pan-Way® T70CIW6 Raceway Cover, 6 ft L x 2.76 in W x 0.36 in H, PVC, White

SKU106701

MFGR #T70CIW6

Your Cost: $4.21/ea
The minimum package quantity is 6
T-70 non-metallic multi-channel capable surface raceway shall be used to route, protect, and conceal data, voice, video, fiber optic and power cabling. The raceway shall be listed as suitable for use in applications up to 600 volts between conductors by Underwriters Laboratories, Inc. per standard 5A, and by Canadian Standards Association, Inc. per 22.2 no. 62.1-03, when screw secured and installed per instructions. A full complement of fittings with a 1 minimum bend radius compliant with TIA/EIA-568-B, must be available as well as device brackets and internal junction boxes to install a variety of communication and electrical devices. Divider walls must be available to form separate channels in the multi-channel raceway. Snap-on faceplates for data and powerterminations shall be available. An offset box shall be available, with versions for Panduit snap-on as well as screw mount faceplates, for mounting the power receptacle outside of the raceway channel. T-70 raceway will be manufactured from impact-resistant material with flammability rating of V-0. T-70 raceway must be tamper resistant yet, also allow access for moves, adds and changes. T-70 raceway finish shall be pure color and will resist scratches and dents and will not peel or corrode. T-70 raceway shall be available in four standard colors and shall be optimized for use with the Panduit® Pan-Net ® Communication System.
T-70 non-metallic multi-channel capable surface raceway shall be used to route, protect, and conceal data, voice, video, fiber optic and power cabling. The raceway shall be listed as suitable for use in applications up to 600 volts between conductors by Underwriters Laboratories, Inc. per standard 5A, and by Canadian Standards Association, Inc. per 22.2 no. 62.1-03, when screw secured and installed per instructions. A full complement of fittings with a 1 minimum bend radius compliant with TIA/EIA-568-B, must be available as well as device brackets and internal junction boxes to install a variety of communication and electrical devices. Divider walls must be available to form separate channels in the multi-channel raceway. Snap-on faceplates for data and powerterminations shall be available. An offset box shall be available, with versions for Panduit snap-on as well as screw mount faceplates, for mounting the power receptacle outside of the raceway channel. T-70 raceway will be manufactured from impact-resistant material with flammability rating of V-0. T-70 raceway must be tamper resistant yet, also allow access for moves, adds and changes. T-70 raceway finish shall be pure color and will resist scratches and dents and will not peel or corrode. T-70 raceway shall be available in four standard colors and shall be optimized for use with the Panduit® Pan-Net ® Communication System.

ARRA Compliant

Y

Buy American Compliant

Y

Catalog Number

T70CIW6

Country of Origin

USA

Cover Type

Multi-channel

Currency

USD

EU RoHS Indicator

Y

Gross Volume UOM

CF

Gross Volume UOM Metric

m3

Gross Weight Per Pack

0.1600 lb

Gross Weight per Pack Metric

0.44

Gross Weight UOM Metric

kg

Height [Metric]

0.7620 cm

Length [Metric]

182.8800 cm

Mounting Type

Snap-On

Returnable

Y

Series

T-70

Standard

CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129

Standards

ARRA, Buy American and RoHS Compliant, CE Certified, CSA 22.2 No.62-93, UL and UL5A Listed

Sub Brand

Pan-Way?®

Type

Channel

UNSPSC

39131710

UPC 11

07498363064

UPC 12

07498363064

Width [Metric]

8.8900 cm

Stock Status

NONSTOCK

Brand

Panduit®

Manufacturer

Panduit®

Color

Off-White

Height

0.30 in

Length

72.00 in

Material

PVC

Width

3.50 in
