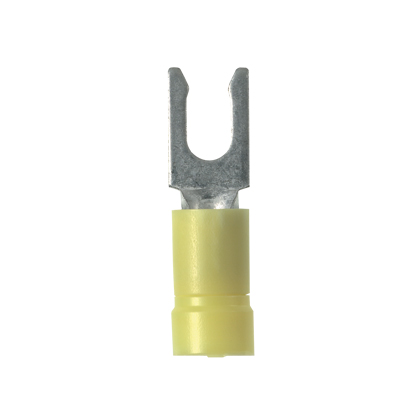

Panduit® PV10-10LF-D Locking Fork Terminal, vinyl insulated,
Custom_Product_Images_Illustration
Panduit® PV10-10LF-D Locking Fork Terminal, vinyl insulated,
SKU6876
MFGR #PV10-10LF-D
Your Cost: $0.3724/ea($372.44 / m)
List: Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
ARRA Compliant Y Buy American Compliant Y Catalog Number PV10-10LF-D Conductor Type Solid/Stranded Connection Funnel Entry Country of Origin MEX Currency USD Enclosure Fork shape EU RoHS Indicator Y Finish Tin Plated Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 2.1500 lb Gross Weight per Pack Metric 0.98 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Insulation PVC Length [Metric] 17.9070 cm Mounting 5/16 Returnable Y Series PV-LF Size #10 Specifications 5/16 in L Wire Strip, 0.225 in Dia Maximum Vinyl Insulation, 0.23 in Clearance, Funnel Entry Barrel Configuration Standard UL Listed 587H E52164; CSA Certified LR31212 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B Stud Size #10 Sub Brand Pan-Term?® Temperature Rating 221 °F Tongue Size 0.34 in W x 0.04 in THK Tongue Type Locking Fork Type Ring Terminal UNSPSC 39121409 UPC 11 07498380817 UPC 12 07498380817 Voltage Rating 600 V Width 3.35 in Width [Metric] 8.5090 cm Wire Size #10 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Barrel Type Brazed Seam Color Yellow Conductor Size 12 to 10 AWG Length 7.05 in Material Copper Locks in place for secure connection Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength Crimp termination Free hanging (in-line) mounting Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 Locks in place for secure connection 500/Box, Bulk package
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | PV10-10LF-D |
| Conductor Type | Solid/Stranded |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Enclosure | Fork shape |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 2.1500 lb |
| Gross Weight per Pack Metric | 0.98 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Insulation | PVC |
| Length [Metric] | 17.9070 cm |
| Mounting | 5/16 |
| Returnable | Y |
| Series | PV-LF |
| Size | #10 |
| Specifications | 5/16 in L Wire Strip, 0.225 in Dia Maximum Vinyl Insulation, 0.23 in Clearance, Funnel Entry Barrel Configuration |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B |
| Stud Size | #10 |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 221 °F |
| Tongue Size | 0.34 in W x 0.04 in THK |
| Tongue Type | Locking Fork |
| Type | Ring Terminal |
| UNSPSC | 39121409 |
| UPC 11 | 07498380817 |
| UPC 12 | 07498380817 |
| Voltage Rating | 600 V |
| Width | 3.35 in |
| Width [Metric] | 8.5090 cm |
| Wire Size | #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Barrel Type | Brazed Seam |
| Color | Yellow |
| Conductor Size | 12 to 10 AWG |
| Length | 7.05 in |
| Material | Copper |
| Locks in place for secure connection |
| Fork design provides for fast and easy installation, without the need to remove fastener |
| Insulation support helps to prevent wire damage in bending applications |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Brazed seam protects terminal barrel from splitting during the crimp process |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Crimp termination |
| Free hanging (in-line) mounting |
| Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 |
| Locks in place for secure connection |
| 500/Box, Bulk package |
