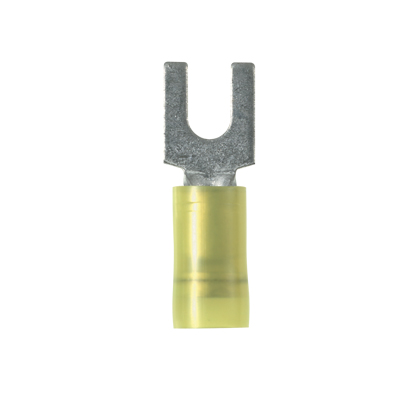

Panduit® PNF10-8F-L Pan-Term® PNF-F Insulated Loose Piece Fork Terminal, 12 to 10 AWG Conductor, 1.02 in L, Sleeved Barrel, Copper
Fork Tongue Terminals
210543
MFG #: PNF10-8F-L
Panduit®
178.04000
/ ea
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - C-TMPNF10-6F-A41262--ENG.pdf(Install Instructions 1 URL)
- Spec Sheet 1 URL - Panduit_PN18_14F_C_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Tech Drawing 1 URL - Panduit_PMNF6_5F_L_Technical_Drawing.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10965_NDKM3F4BE1C9HYZW.pdf(Tech Drawing URL)
- Tech Drawing URL - 10965_VIFOL36D80B9ZJSE.pdf(Tech Drawing URL)
- Tech Drawing URL - 34188835.pdf(Tech Drawing URL)
- Features
| Nylon insulated |
| Funnel entry barrel configuration |
| Fork design provides fast and easy installation, without the need to remove fastener |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications |
| Crimp termination |
| Free hanging (in-line) mounting |
| Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 |
| Locks in place for secure connection |
| 50/Bottle, Standard package |
