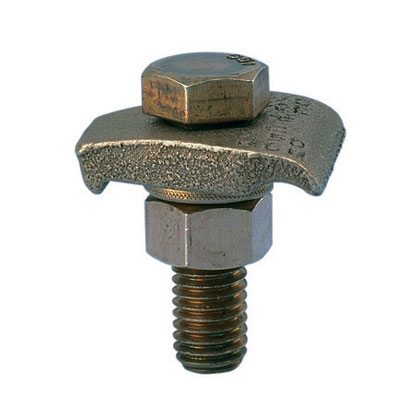

Panduit® GMS-2-Q StructuredGround™ GMS Grounding Toe Clamp, 4 to 2/0 AWG Conductor, Bronze
Grounding-Bonding Clamps
594976
MFG #: GMS-2-Q
Panduit®
3887.38000
/ ea
The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround® Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe, and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround® Mechanical Connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.
- Full Eng Drawing URL - C-GRGPL-10-Q--ENG.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - C-GRGMS-1-X--ENG.pdf(Install Instructions 1 URL)
- Tech Bulletin URL - 10965_F7LHTJDUKP3QYIM9.pdf(Tech Bulletin URL)
- Tech Bulletin URL - D-GRCB02--SA-ENG-StructGrdMechCon-W.pdf(Tech Bulletin URL)
- Tech Drawing URL - 10965_8FTRSZ2BPWCI1QEL.pdf(Tech Drawing URL)
- Tech Drawing URL - 10965_A1JSKMTONL9GB5DV.pdf(Tech Drawing URL)
- Features
Used to ground copper code conductor to flat surfaces |
Cast from high strength, electrolytic bronze to provide reliable grounding connections |
High strength silicon bronze hardware for long term reliable assembly |
Accommodates a wide range of conductor sizes minimizes inventory requirements |
UL Listed for grounding and bonding and suitable for direct burial in earth or concrete |
0.38 in Dia bolt, 9/16 in hex bolt and nut |
4 AWG solid - 2/0 AWG stranded |
