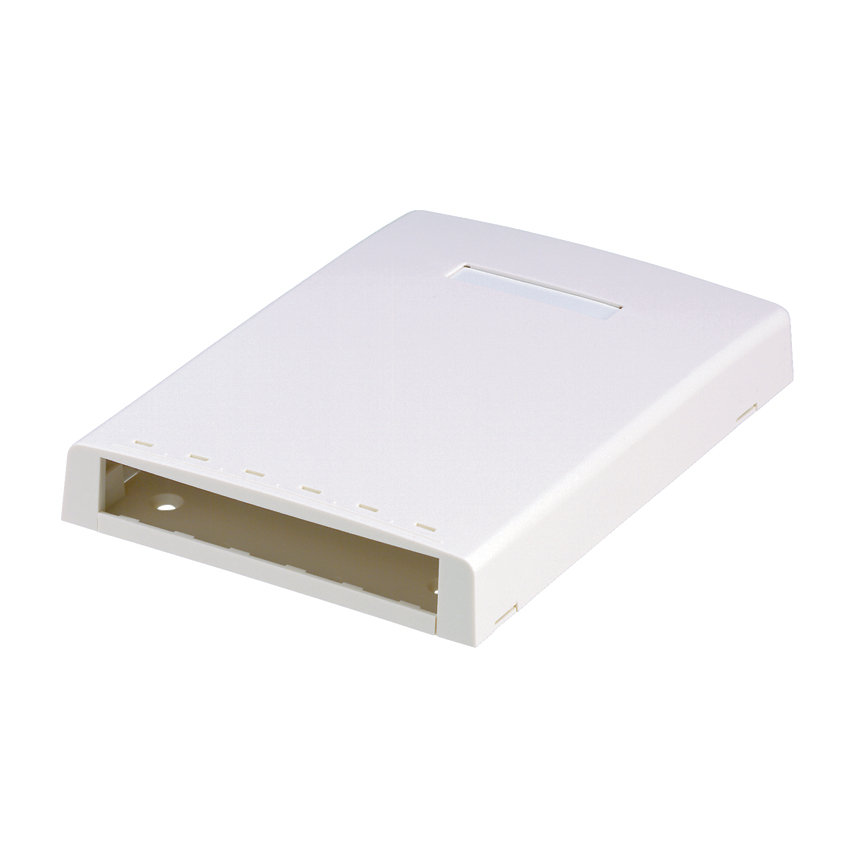

Panduit® CBXF6WH-AY Mini-Com® Elongated Surface Mount Box, 6 Ports, ABS, White
Surface Mount Boxes
910818
MFG #: CBXF6WH-AY
Panduit®
31.87000
/ ea
- Catalog 1 URL - Panduit_CBXF6WH_AY_Catalog_1.pdf(Catalog 1 URL)
- Full Eng Drawing URL - CBXJ2__-A.dxf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_TYLARDVJ8I2MS03K.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - C-COCBXF6XX-AY--ENG.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-OTPN56--REVJ--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10965_XKYUBMH84IOTSN63.pdf(Spec Sheet URL)
- Spec Sheet URL - D-OTSP26--WW-ENG-MiniComMultiMediaFSMB.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_MD86YJXFNABH4Z3C.dxf(Tech Drawing URL)
- Features
| Surface mount box holds up to twelve Mini-Com® modules |
| Built-in fiber spool that stores up to 24 meters of buffered fiber optic cable |
| Box includes side and rear knockouts for cable entry |
| The cover shall include a label pocket with label and label cover which conceals the screw that secures the cover to the base |
| Boxes shall mount easily with supplied adhesive or mounting screws |
| 6 module space |
| Supplied with cable ties, adhesive tape, label/label cover, screw cover, mounting screws, and screw to secure cover to base |
| Mounts to a single gang, double gang, or DIN size opening with supplied screws or double-side adhesive tape for a variety of surfaces |
| Multi-Media/fiber surface mount boxes |
| 6-port box shall include icon slots above the ports |
