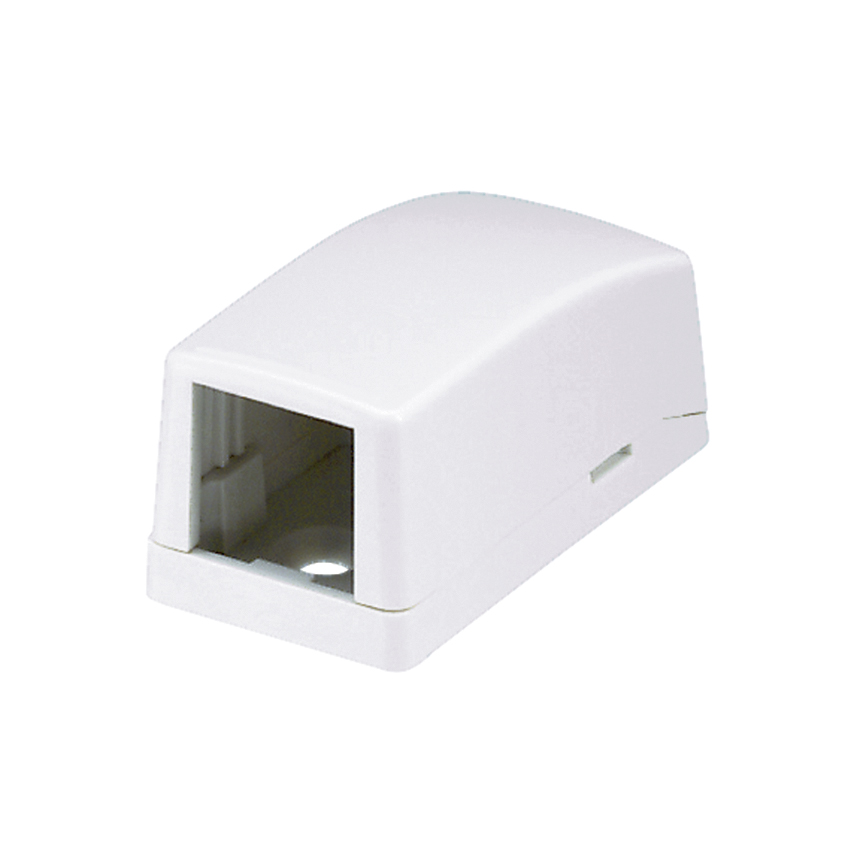

Panduit® CBX1IG-A Mini-Com® Low Profile Surface Mount Box, 1 Ports, ABS, Gray
Surface Mount Boxes
247525
MFG #: CBX1IG-A
Panduit®
5.43000
/ ea
- Catalog URL - Panduit_CBX12AW_AY_Catalog.pdf(Catalog URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_TYLARDVJ8I2MS03K.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-OTPN56--REVJ--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10965_JBWKA2C1O3HXSZR5.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_LH48M6R1GAFQIWXK.dxf(Tech Drawing URL)
- Features
| Surface mount boxes shall have a low profile design and be available in a variety of port densities |
| Boxes shall accept most Mini-Com® Modules for fiber, copper, and audio/video applications, the boxes shall mount with screws, adhesive, or optional magnets |
| The box covers include breakouts for use with surface raceway |
| Cable tie slots shall be included to provide strain relief on incoming cables |
| Select boxes shall include spring-shuttered doors |
| Accepts all Mini-Com® Modules, which snap-in and out for easy moves, adds, and changes |
| Presents a more discreet or inconspicuous look |
| Compatible with specific raceway, conceals cable entering the box |
| Select boxes provide a screw that secures the cover to the base |
| Select boxes include a label pocket to meet TIA/EIA-606B labeling standard |
| Magnet can be used with magnet pocket for optional mounting (CBX1**-A does not include a magnet pocket); CBM-X for used with standard boxes, CSBM-X for use with shuttered boxes |
| Select boxes include spring-shuttered doors to protect connections from dust and debris |
| One module space |
| Shuttered doors are polycarbonate |
| International Gray color |
