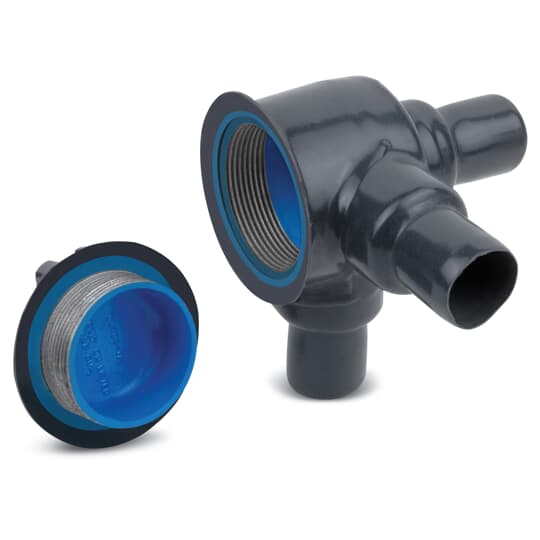

Ocal® GUAM36-G GUA Explosionproof Conduit Outlet Box With Cover, 1 in, 3 in Cover Opening, 14 cu-in, Zinc Plated
Explosion Proof Conduit Outlet Boxes
643464
MFG #: GUAM36-G
Ocal®
370.80000
/ ea
GUA series conduit boxes are installed in hazardous areas to protect conductors, act as pull and splice boxes, provide access to conductors for maintenance and future system changes, act as mounting outlets for fixtures (with proper covers) or change conduit direction.
- Catalog 1 URL - Ocal_X17_G_Catalog.pdf(Catalog 1 URL)
- Catalog URL - Ocal_X17_G_Catalog.pdf(Catalog URL)
- Compliance Cert URL - Ocal_GUAM36_G_RoHS_Sheet.pdf(Compliance Cert URL)
- ROHS Compliance URL - Ocal_GUAM36_G_RoHS_Sheet.pdf(ROHS Compliance URL)
- Seller Home Page URL - 267(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v1-087_CAT2_E422-3.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 087_CAT2_E422-3.pdf(Spec Sheet URL)
- Spec Sheet URL - 12056_Y5QLE3TZ1VFXS7GH.pdf(Spec Sheet URL)
- Applications
- Features
| For Use in Hazardous Locations to Provide Access to Conductors for Pulling, Splicing, Maintenance and Future Changes/upgrades |
| O-Ring Gasket Provided to Assure NEMA 4 Rating |
| Grade 60-45-10 ductile iron bodies and cast aluminum covers |
| Nominal 0.002 in (2 mil) blue urethane coating on both interior and exterior and nominal 0.04 in (40 mil) PVC coating bonded to exterior |
| All hubs have a minimum of 5-full threads, integral bushing and pressure sealing sleeves |
| Explosion proof, dust-ignition-proof and rain tight |
| Provide access to conductors for maintenance and future system changes |
| Mounting outlets for fixtures, with proper covers |
| To change direction in rigid conduit systems |
| Join 2 or more pieces of conduit long run |
| Die cast aluminum cover |
| O-ring gasket provided to assure NEMA 4 rating |
| PVC double coated aluminum |
