NuTone® QT300 Bathroom Fan, 300 cfm, 3-1/4 in Duct, 120 VAC, 2.5 A, Import

Wall & Ceiling Exhaust Fans
752335 MFG #: QT300
Broan®
253.43000 / ea

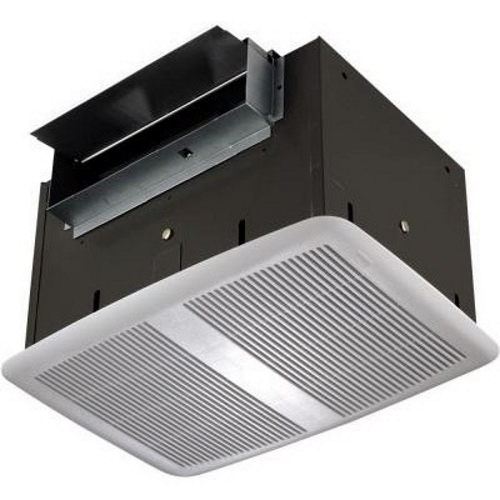

PIC_QT300
NuTone® Bathroom Fan, 300 cfm, 3-1/4 in Duct Dia, 120 VAC, 2.5 A, 60 Hz, 16-1/2 in Grille Length, 12-3/32 in Grille Width, Polymeric Grille, 14-1/4 in Housing Length, 10 in Housing Width, 9 in Housing Height, Steel Housing, Ceiling Mount, White, Import
QTY
Add to Wishlist
  • Applications
  • Features
For Utility, Workshops Or Recreation Rooms
Sturdy baked brown-enamel cold rolled steel housing is lined with sound-deadening foam for quiet operation; Low RPM thermally protected motor plugs into prewired junction box; Motor and twin blowers dynamically balanced for smooth, quiet operation; Vents horizontally or vertically; Duct collar with quiet backdraft damper included; Installs easily between 16 IN on-center joists with slotted mounting brackets; Slots on housing sides provide alternative mounting; Wiring knockouts located on top and back of housing; Electronically balanced zinc plated steel blower wheel; Blower wheel dimension: 5-1/4 IN OD X 3-1/8 IN Depth; For eliminating pollutants such as humidity, dust, tobacco smoke or other odors from utility rooms, workshops or recreation rooms
Low RPM motor plugs into prewired junction box for simple installation and dynamically balanced twin blowers, housed in a sturdy brown-enamel steel can that is lined with sound-deadening foam provides smooth, quiet operation, making it a nice addition to any busy environment
Fan vents horizontally or vertically with 3-1/4 in x 10 inch duct for top or side discharge, giving you options for a variety of installation situations; includes a duct collar with quiet backdraft damper so you get the ventilation performance you expect
Installs easily between 16 in O.C. joist with slotted mounting bracket
Eliminate pollutants such as humidity, dust, tobacco smoke or other odors from utility rooms, workshops or recreation rooms
Vents horizontally or vertically with 31/4 in x 10 in duct
Slots on housing sides provide alternative mounting options so this fan will fit just about any place you need it
Wiring knockouts located on top and back of housing
Purchase a NuTone solid state speed control separately
3-1/4 in x 10 in duct
Zinc plated steel, electronically balanced blower wheel
16-1/2 x 123/32 x 5/8 in electrical rating
4.5 sones
Vertical/horizontal discharge
Duct collar with quiet backdraft damper included
