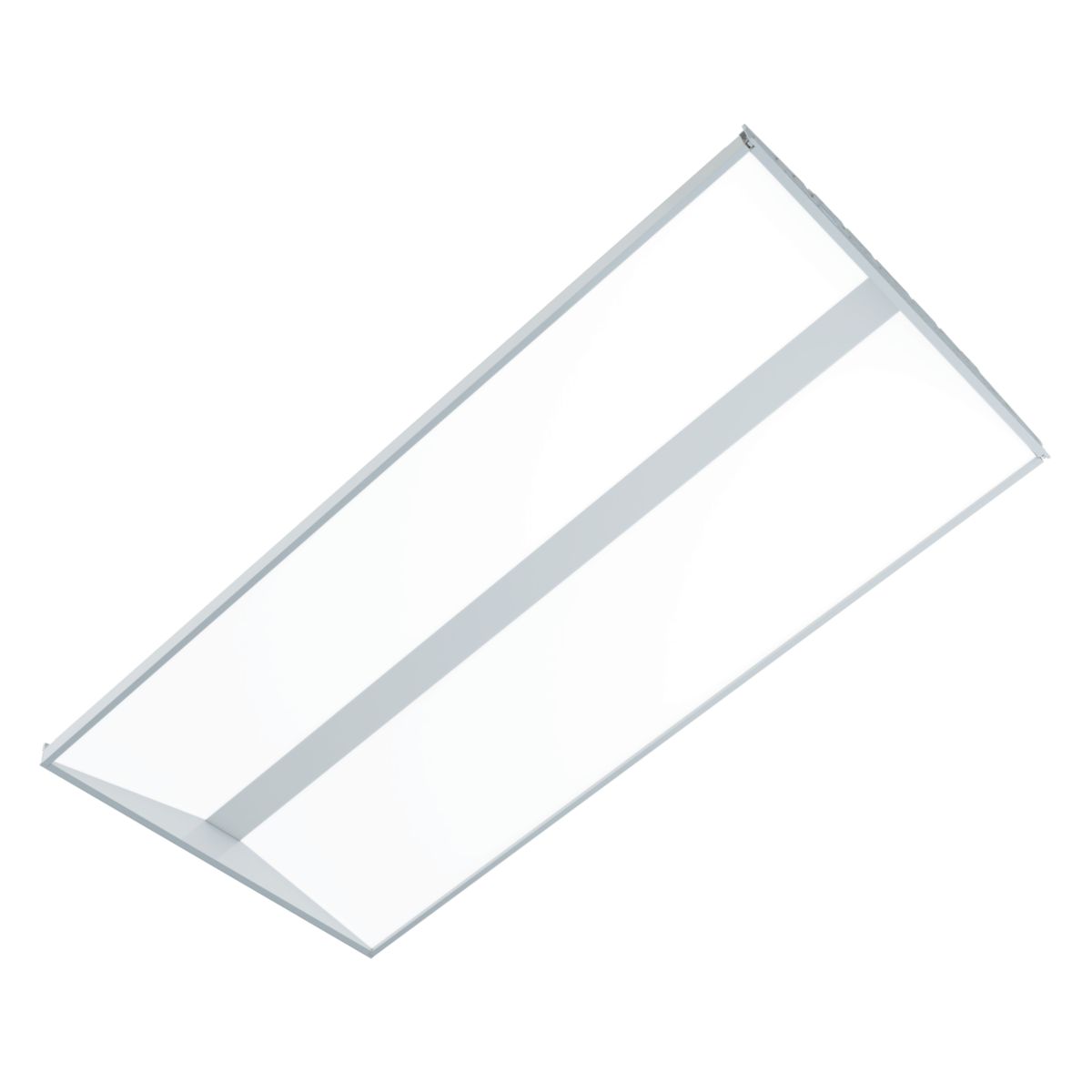

Metalux Specification Encounter™ 24EN-LD2-45-UNV-L840-CD1-U 22EN Troffer, (1) LED Lamp, 120 to 277 VAC, Aluminum Housing
Indoor Troffers
1327874
MFG #: 24EN-LD2-45-UNV-L840-CD1-U
Metalux®
270.22000
/ ea
Metalux Specification Encounter™ Troffer, Series: 22EN, 120 to 277 VAC, 0.137 A, LED Lamp, 38 W Lamp, 1 Lamps, Static Recessed Trim, 4000 K Color Temperature, Acrylic Lens, 4500 Lumens, Ceiling/Recessed Mounting, Aluminum Housing Material, 51.438 in L x 27.063 in W x 5.313 in H Dimensions
- Brochure URL - 11143_AHQ1MD6KGTS053BI.pdf(Brochure URL)
- Brochure URL - bd8e06e73b1e416c927ead3f014c2b37(Brochure URL)
- http://www.cooperlighting.com(Seller Home Page URL)
- Install Instructions 1 URL - 11143_I7R9PQF8JZE5MCGN.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 83a6d119b1dc4193b710ad400063146c(Install Instructions 1 URL)
- Spec Sheet URL - 11143_Y4L5MCG7HZ1ST98A.pdf(Spec Sheet URL)
- Spec Sheet URL - b900ad52409e46b29c62ad4100849be4(Spec Sheet URL)
- Applications
- Features
| For lighting applications |
| Available in 1' x 2', 1' x 4', 2' x 2' and 2' x 4' recessed versions |
| 3 Lumens output levels that are comparable to 26 and 32 W CFL |
| 4 CCT color choices offer the user a variety of both warm and cool environmental settings |
| Standard 90+ CRI COB for natural color rendering with the space |
| Standard 5% dimming with 0 to 10 VDC and 120 Triac dimming |
| Rapid installation of trim with driver quick connect system and standard retention sp |
| 0.1 A at 120 VAC, 0.04 A at 277 VAC amperage rating |
| Installation uses Pro-Nail™ bar hangers with integral nail compatible with joist systems and ma |
