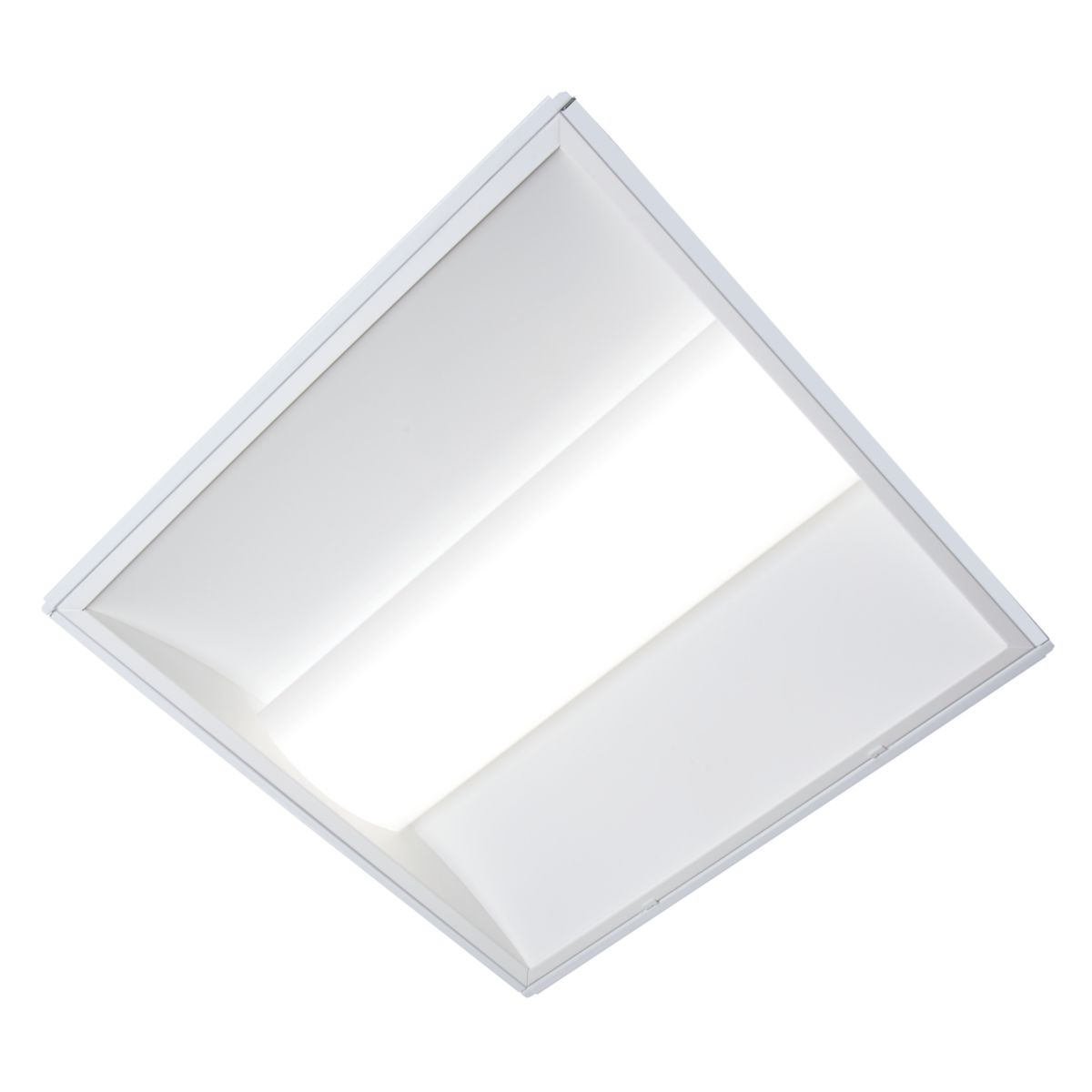

Metalux 22CZ-LD5-34-UNV-L835-CD1-U 2x2 Cruze Direct/Indirect Specification Grade Specification Recessed Troffer, LED 5.0 Lamp, 29.4 W Fixt
Indoor Troffers
1023924
MFG #: 22CZ-LD5-34-UNV-L835-CD1-U
Metalux®
126.35000
/ ea
Metalux Specification Recessed Troffer, Direct/Indirect Specification Grade, Series: 2x2 Cruze, 120 to 277 VAC, 29.4 W Fixture, 0.106 A, LED 5.0 Lamp, 119 Lumens/W Light Output, 60000 hr Average Life, 3500 K Color Temperature, 85 CRI, 0 to 10 VDC Dimmable Ballast, Frosted Ribbed Acrylic Lens, 3400 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, 24-1/2 in L x 24 in W x 3-1/2 in H Dimensions
- Applications
- Features
| Commercial Office Spaces, Schools, Hospitals, Retail Merchandising Areas, Lighting Applications |
| Matte white door provides access to drivers and LED from below |
| The Cruze series features efficiency, quality and performance |
| Rigid housing is die formed of code gauge prime cold rolled steel and features full lengt |
| Side flanges are hemmed |
| Innovative design provides superior lens brightness uniformity and visual comfort |
| Unibody endplates are securely attached with interlocking tabs and screws |
| Four auxiliary fixture end suspension points provided |
| 0.106 A at 277 VAC |
