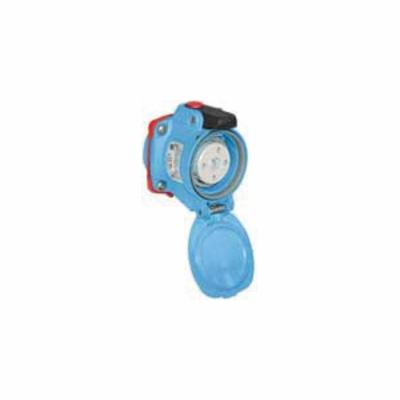

Meltric Decontactor™ 63-14043-843 DSN Grounding Switch Rated Female Receptacle With Angle Adapter, 480 VAC, 20 A, 3 Poles
Pin & Sleeve Receptacles
344849
MFG #: 63-14043-843
MELTRIC
113.65000
/ ea
DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
- Features
| Features: Switch Ratings (AC Only): Branch Circuit & Motor Circuit Disconnect Switching; Short Circuit Rating: 100 KILO AMP Close & Withstand Testing Was Performed With RK1 Current Limiting Fuses Sized At 400 PEC Of The Highest Full Load Motor Ampacity Associated With The Devices HP Rating; Horsepower Ratings: 5 HP At 3 PH, 208 V; Polarity: 3P+G; Includes: Padlock Pawl |
