Littelfuse®

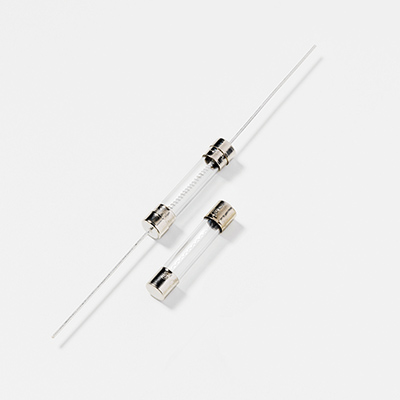

Littelfuse® 313004P POWR-GARD® Slo-Blo® 313 Time Delay Cartridge Fuse, 4 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® 313004P POWR-GARD® Slo-Blo® 313 Time Delay Cartridge Fuse, 4 A, 250 VAC, 10 kA Interrupt, Cartridge Body
SKU9498
MFGR #313004P
Your Cost: $11.35/ea
List: The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
Alternate Catalog Number 0313004.VXP Application TVSS ARRA Compliant N Body Size 1/4 in Dia x 1-1/4 in L Body Style Cartridge Buy American Compliant N Catalog Number 313004P Country of Origin CA Currency USD EU RoHS Indicator C Frequency Rating Cartridge Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-AB Material Glass Mounting Type Holder Rejection|Non~Rejection Current-limiting Response Time 4 hr, 1 hr, 5 to 30 sec in Series 313 Short Circuit Rating Glass Standard UL Recognized Standards RoHS CompliantUL 248-12UL E10480CSA 29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD Terminal Type Ferrule Type Surge Supp UNSPSC 39121627 UPC 11 07945892305 UPC 12 079458923056 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 5 A Class Glass Interrupt Rating 10 kA Voltage Rating 250 VAC TVSS Current-limiting Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies Guesswork and time consuming circuit testing is eliminated Unique design offers the same quality performance characteristics as the standard 3AG fuse design Lead free Nickel-plated brass cap -55 to 125 deg C operating temperature 10 kA at 125 VAC interrupting rating 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time 0.0311 ohms nominal cold resistance 76.1 I2T (A2 sec) nominal melting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0313004.VXP |
| Application | TVSS |
| ARRA Compliant | N |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Body Style | Cartridge |
| Buy American Compliant | N |
| Catalog Number | 313004P |
| Country of Origin | CA |
| Currency | USD |
| EU RoHS Indicator | C |
| Frequency Rating | Cartridge |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-AB |
| Material | Glass |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Current-limiting |
| Response Time | 4 hr, 1 hr, 5 to 30 sec in |
| Series | 313 |
| Short Circuit Rating | Glass |
| Standard | UL Recognized |
| Standards | RoHS CompliantUL 248-12UL E10480CSA 29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD |
| Terminal Type | Ferrule |
| Type | Surge Supp |
| UNSPSC | 39121627 |
| UPC 11 | 07945892305 |
| UPC 12 | 079458923056 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 5 A |
| Class | Glass |
| Interrupt Rating | 10 kA |
| Voltage Rating | 250 VAC |
| TVSS |
| Current-limiting |
| Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids |
| 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies |
| Guesswork and time consuming circuit testing is eliminated |
| Unique design offers the same quality performance characteristics as the standard 3AG fuse design |
| Lead free |
| Nickel-plated brass cap |
| -55 to 125 deg C operating temperature |
| 10 kA at 125 VAC interrupting rating |
| 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time |
| 0.0311 ohms nominal cold resistance |
| 76.1 I2T (A2 sec) nominal melting |
