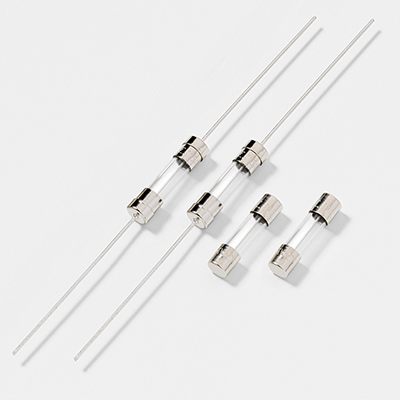

Littelfuse® 235004P 235 Fast Acting Cartridge Fuse, 4 A, 125 VAC, 10 kA Interrupt, Class RK5, Cylindrical Body
Custom_Product_Images_Illustration
Littelfuse® 235004P 235 Fast Acting Cartridge Fuse, 4 A, 125 VAC, 10 kA Interrupt, Class RK5, Cylindrical Body
SKU1301478
MFGR #235004P
Your Cost: $3.03/ea
List: For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
Alternate Catalog Number 0235004.VXP Application General Purpose ARRA Compliant N Body Size 5 mm Dia x 20 mm L Body Style Cartridge Buy American Compliant N Catalog Number 235004P Country of Origin MX Currency USD EU RoHS Indicator C Frequency Rating RoHS Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Class RK5 Item Group 079458-I6 Material Glass Mounting Type Holder Rejection|Non~Rejection Time-Delay Response Time 4 hr, 1 hr, 5 sec mm Series 235 Short Circuit Rating Glass Standard Standard 248-12 UL Listed/CSA Standards RoHS CompliantUL 248-12UL198M ListedCSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD FLSR Series Terminal Type Ferrule Type Class RK5 UNSPSC 39121627 UPC 11 07945890851 UPC 12 079458908510 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 250 A Class RK5 Interrupt Rating 10 kA Voltage Rating 125 VAC General Purpose Time-Delay Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits 0.02455 ohms resistance 17.14 I2T (A2 sec) nominal melting -55 to 125 deg C operating temperature Lead free Nickel-plated brass cap, tin plated copper leads 4 hrs minimum at 100%, 1 hr maximum at 135%, 5 sec at 200% opening time 10 kA at 125 VAC interrupting rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0235004.VXP |
| Application | General Purpose |
| ARRA Compliant | N |
| Body Size | 5 mm Dia x 20 mm L |
| Body Style | Cartridge |
| Buy American Compliant | N |
| Catalog Number | 235004P |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Frequency Rating | RoHS |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Class RK5 |
| Item Group | 079458-I6 |
| Material | Glass |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Time-Delay |
| Response Time | 4 hr, 1 hr, 5 sec mm |
| Series | 235 |
| Short Circuit Rating | Glass |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-12UL198M ListedCSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD FLSR Series |
| Terminal Type | Ferrule |
| Type | Class RK5 |
| UNSPSC | 39121627 |
| UPC 11 | 07945890851 |
| UPC 12 | 079458908510 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 250 A |
| Class | RK5 |
| Interrupt Rating | 10 kA |
| Voltage Rating | 125 VAC |
| General Purpose |
| Time-Delay |
| Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits |
| 0.02455 ohms resistance |
| 17.14 I2T (A2 sec) nominal melting |
| -55 to 125 deg C operating temperature |
| Lead free |
| Nickel-plated brass cap, tin plated copper leads |
| 4 hrs minimum at 100%, 1 hr maximum at 135%, 5 sec at 200% opening time |
| 10 kA at 125 VAC interrupting rating |
