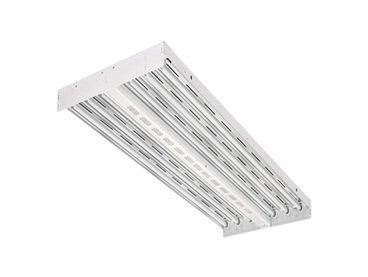

Lithonia Lighting® IBZT56L IBZ High Bay Fixture, 6 T5 Fluorescent Lamp, 120/277 VAC, White Baked Enamel Housing
Indoor High Bay Fixtures
881574
MFG #: IBZT5 6L
Lithonia Lighting®
355.00000
/ ea
The I-BEAM® IBZ is an energy-saving fluorescent high bay solution that is an ideal one-for-one replacement of common metal halide high bay systems. Its configurable design supports many options and accessories that would satisfy almost any high bay application. Typical applications include manufacturing, warehousing, institutional and retail facilities. Certain airborne contaminants can diminish integrity of acrylic.
- Applications
- Features
| Atrium, Auditorium, Manufacturing, Sports and Recreation, Warehouse/Storage |
| INTENDED USE — The I-BEAM fluorescent high bay is an ideal one-for-one replacement of common metal halide high bay systems. Applications include manufacturing, warehousing, commericial facilities and retail. Thefluorescent I-BEAM fixture performs at mounting heights from 15'-40'. Certain airborne contaminants can diminish integrity of acrylic. Click here for Acrylic Environmental Compatibility table for suitable uses. |
| The I-BEAM® IBZ fluorescent high Bay™ is ideal for new construction and renovation projects |
| Rugged fixture construction coupled with excellent fixture performance |
| Channel is formed of heavy duty code gauge steel to stand-up to the most demanding elements |
| Lamp holder assembly protects from incidental damage to reflectors during installation |
| Channel is high gloss white baked enamel, five stage iron phosphate pretreatment ensures superior paint adhesion and rust resistance |
| Narrow distribution is ideal for narrow or aisle lighting applications and features precision formed segmented optics utilizing Alanod® MIRO® 4 specular aluminum reflectors |
| Provides 95% reflectivity and warranted for 25 years |
| Thermally protected, resetting, class P, HPF, a sound rated electronic ballast |
| Suitable for suspension by chain, cable or hook mono point hanger |
| Access plate on the back of channel housing allows for quick and easy wiring |
| Access plate on the back of channel housing allows for quick and easy wiring |
| Lamp included |
