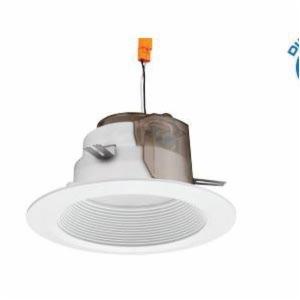

Lithonia Lighting® 6BPMW-HL-LED-M6 6BPMW Dimmable IC/Non-IC Retrofit LED Module, LED Lamp, 120 VAC, Die Cast Aluminum Housing
Retrofit LED Modules
778244
MFG #: 6BPMWHLLEDM6
Lithonia Lighting®
48.75000
/ ea
The P series gives you the power of Performance. Available in 4 in, 5 in and 6 in, P series is engineered to deliver quality construction and superior lighting performance. Perfect for residential spaces such as kitchens and basements and light commercial applications such as boutiques and hotels, P series is up to 86 percent more efficient than incandescent luminaires giving you up to 46 years of expected life.
- Applications
- Features
| Light Commercial, Residential |
| The P Series gives you The Power of Performance. Available in 4", 5" and 6", P Series is engineered to deliver quality construction and superior lighting performance. Perfect for residential spaces such as kitchens and basements and light commercial applications such as boutiques and hotels, P Series is up to 86 percent more efficient than incandescent luminaires giving you up to 46 years of expected life! (50,000 hours at 3 hours per day) The P Series 6" can fit any 6-inch recessed can-style housings making it great for both new construction and retrofit applications. It can retrofit a 65W to 100W incandescent lamp. P Series in Matte White is wet rated for installation in any indoor location. The addition of trim inserts- available individually or as part of a preassembled LED module- in multiple finishes give you more style options! Choose from: oil rubbed bro |
| Recessed LED module is the most economical means to create a well lit environment with exceptional energy efficiency and near zero maintenance |
| Great for retrofit into existing downlight cans or new construction and remodel applications |
| Unique torsion spring and friction clip retention allows fitment into nearly 100% of installed cans |
| The LED module maintains at least 70% light output for 50000 hr |
| Aluminum spun reflector with deep baffle configuration for reduced glare |
| Inner reflector cone funnels light through the pressed-in diffused lens |
| Diffused lens at end of mixing chamber to provide even light distribution for general illumination, equivalent to 65W BR30 or 100W BR30 lamp |
| Center 2 edge technology created for a single-point source |
| Primary power disconnect provided for simple connection to a dedicated LED connector in the housing |
| P series patent pending driver has zero inrush which allows power loads to be calculated with actual rated wattages |
| Suitable for installation in standard height rough-in sections |
| Twin torsion springs ensure easy installation |
| Friction clips included to allow fitment into cans without torsion brackets from an inside diameter of 6 to 7 in |
| 5-7/8 in aperture |
| 7-5/8 in overlap trim |
| -18 to 46 deg F temperature rating |
| 0.97 power factor |
| 50/60 Hz input frequency |
