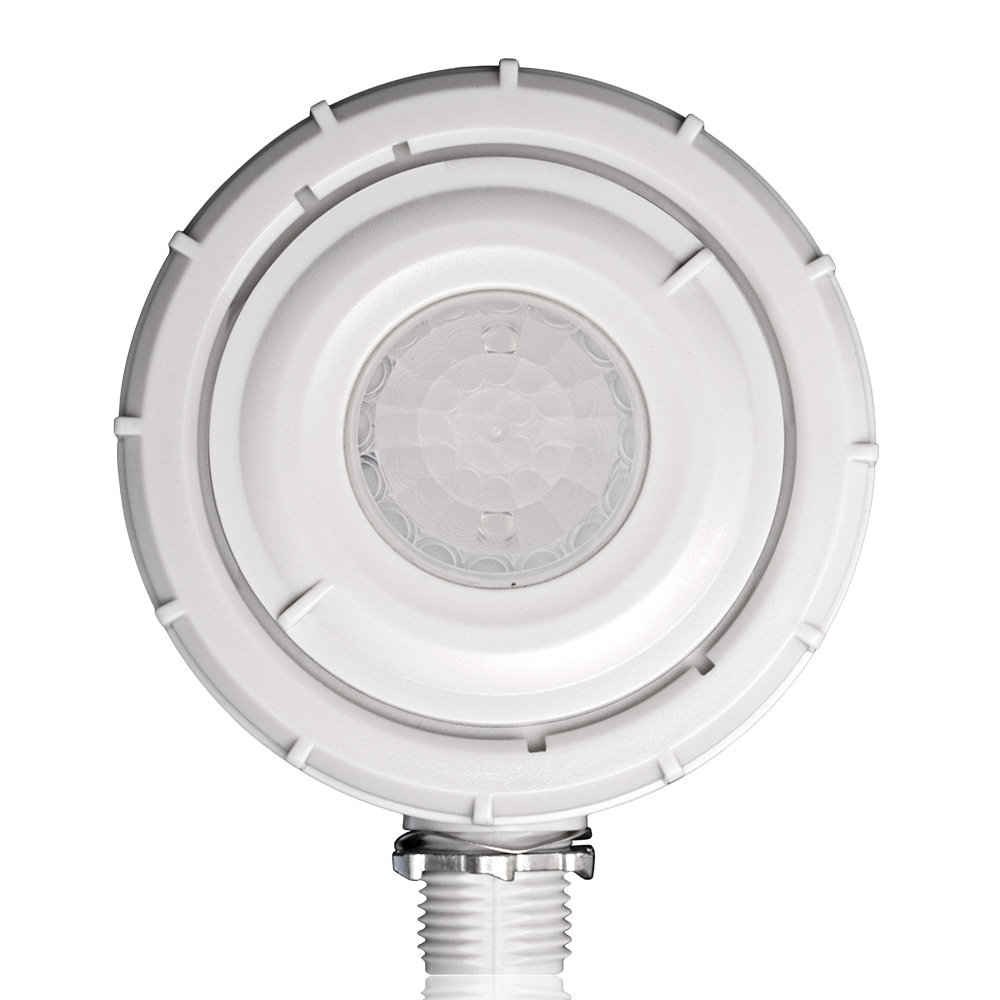

Leviton® OSFHW-CTW External High Bay Fixture Mount Occupancy Sensor, 120/277/347 VAC, Passive Infrared Sensor, 20 to 40 ft Coverage, 360 deg Viewing, Fixture Mount
Fixture Mount Occupancy Sensors
1282839
MFG #: OSFHW-CTW
Leviton®
54.44000
/ ea
Leviton® High Bay Fixture Mount Occupancy Sensor, External, 120/277/347 VAC, 1500 VA Power, Passive Infrared Sensor, 20 to 40 ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, Fluorescent Lamp, 50/60 Hz Response, Wired Connection, IP65 Enclosure, Fixture Mounting, -40 to 71 deg C, Plastic, White, 4-3/4 in H x 3-3/4 in W Dimensions
- Applications
- Features
| Wet Locations |
| Wet Location |
| Quicksnap locking mechanism built into the 1/2 in nipple allows for the fastest and easiest mounting not requiring a threaded lock-nut |
| Time delay can be set can be set at any time without requiring power to the sensor, time |
| Instant ON'' closing relay fires lamps in under 5 s |
| Zero crossing circuitry optimizes relay operation for reliable, long-life operation, robust mechanical latchin |
| Automatically adjusts the PIR sensitivity as ambient temperature rises to increase de |
| For increased energy savings and to mitigate nuisance tripping, the super-bright LED indicates advanced detection has been activated and the lights will onl |
