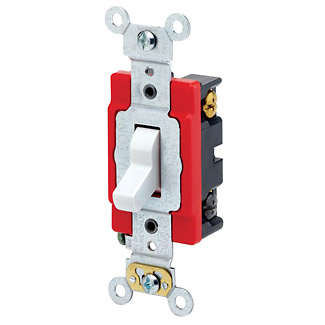

Leviton® 1223-LHW 3-Way Illuminated-OFF Self-Grounding Toggle Switch, 120 VAC, 20 A, 1 hp Power Rating
Toggle Switches
1287959
MFG #: 1223-LHW
Leviton®
44.47000
/ ea
Leviton®, 1223-LHW, Toggle Switch, 3-Way Illuminated-OFF Self-Grounding, 120 VAC, 20 A, 1 hp Power, 1 hp at 120 VAC Contact, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 1.6 in D Dimensions
- http://www.leviton.com(Seller Home Page URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=1223-LHW§ion=41455&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_VCH9AU8D6YFRE2XP.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=34161&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial Applications |
| Heavy gauge copper alloy brush arm for superior performance |
| Lighted handle illuminated when load is OFF |
| Pilot light toggle illuminated when load is ON |
| Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance |
| Self-grounding clip (self grounding when used with a grounded metal wallbox) |
| 1 hp at 120 VAC power rating |
