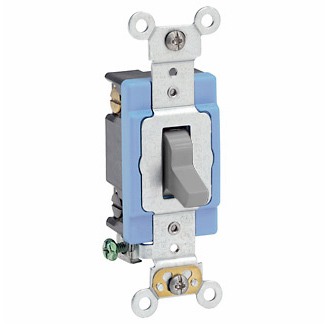

Leviton® 1204-2GY 4-Way Self-Grounding Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating
Toggle Switches
1287678
MFG #: 1204-2GY
Leviton®
41.63000
/ ea
Leviton®, 1204-2GY, Toggle Switch, 4-Way Self-Grounding, 120/277 VAC, 15 A, 1/2, 2 hp Power, 1/2 hp at 120 VAC, 2 hp at 240 VAC Contact, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Gray, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
- http://www.leviton.com(Seller Home Page URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=1204-2GY§ion=41455&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_NEC438VY6GIWQXFA.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=34092&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial Applications |
| Heavy gauge copper alloy brush arm for superior performance |
| Large silver alloy contacts for long life prevent sticking, welding and excessive pitting |
| Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance |
| Self-grounding clip (self grounding when used with a grounded metal wallbox) |
| 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating |
