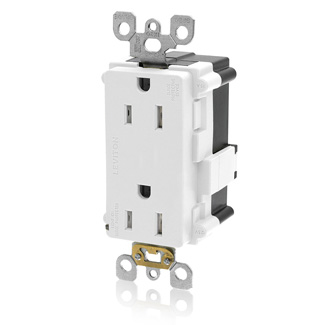

Lev-Lok® MT528-W MT528 Duplex Outlet Surge Protective Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Lev-Lok® MT528-W MT528 Duplex Outlet Surge Protective Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU971586
MFGR #MT528-W
Your Cost: $59.96/ea
The revolutionary line of Lev-Lok® modular wiring device system from Leviton speeds the installation of wiring devices from start to finish. At the rough-in stage, there is no need to make and install pigtails: simply install the Lev-Lok® wiring module. When you're ready to install the wiring devices, simply connect the wiring module to the device, tighten the mounting screws and you're done.
The revolutionary line of Lev-Lok® modular wiring device system from Leviton speeds the installation of wiring devices from start to finish. At the rough-in stage, there is no need to make and install pigtails: simply install the Lev-Lok® wiring module. When you're ready to install the wiring devices, simply connect the wiring module to the device, tighten the mounting screws and you're done.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number MT528-W Color White Connection Modular Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 5.2500 in Height [Metric] 10.7950 cm Length 10.8750 in Length [Metric] 5.7150 cm Material Polycarbonate Operating Temperature -10 to 60 °C Outlet Duplex Replaced Catalog Number T5280-W Size 4.21 in H x 1.78 in W x 2.05 in D Standard UL/CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057NEMA WD1/WD6CSA C22.2 No. 42 File No. E13399UL 498 File No. E13399/1449 3rd Edition File No. E317603 Sub Brand Lev-Lok Type Tamper-Resistant Surge Protective Duplex Receptacle Type Of Indicators Light/Audible Alarm UNSPSC 3.912161E+7 UPC 11 07847752188 UPC 12 078477521885 Width 2.00 in Width [Metric] 5.0800 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Frequency Rating 50/60 Hz Short Circuit Current Rating 5 kA Voltage Rating 125 V Commercial Non-Alarmed Tamper resistant shutter mechanism prevents incidental contact with energized contacts Indicator light provides visual indication that equipment is being protected EMI/RFI noise filtering Wide variety of color options aid in identifying different types of equipment or applications Point of use protection for up to 18000 A of surge current total Audible alarm to indicate loss of surge protection and also for hidden locations (can be silenced) Rated at NEMA 5-15R 1/2 hp power rating Brass locking pins Brass-plated steel ground clips Delrin® acetal shutter Mechanism Wiring module leads identified in accordance with UL498 720 Joules rating -30 dB at 500 kHz to 30 MHz noise rejection 5000 A short circuit current rating Self-grounding Tamper-resistant Indicator light diagnostics
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MT528-W |
| Color | White |
| Connection | Modular |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 5.2500 in |
| Height [Metric] | 10.7950 cm |
| Length | 10.8750 in |
| Length [Metric] | 5.7150 cm |
| Material | Polycarbonate |
| Operating Temperature | -10 to 60 °C |
| Outlet | Duplex |
| Replaced Catalog Number | T5280-W |
| Size | 4.21 in H x 1.78 in W x 2.05 in D |
| Standard | UL/CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057NEMA WD1/WD6CSA C22.2 No. 42 File No. E13399UL 498 File No. E13399/1449 3rd Edition File No. E317603 |
| Sub Brand | Lev-Lok |
| Type | Tamper-Resistant Surge Protective Duplex Receptacle |
| Type Of Indicators | Light/Audible Alarm |
| UNSPSC | 3.912161E+7 |
| UPC 11 | 07847752188 |
| UPC 12 | 078477521885 |
| Width | 2.00 in |
| Width [Metric] | 5.0800 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Frequency Rating | 50/60 Hz |
| Short Circuit Current Rating | 5 kA |
| Voltage Rating | 125 V |
| Commercial |
| Non-Alarmed |
| Tamper resistant shutter mechanism prevents incidental contact with energized contacts |
| Indicator light provides visual indication that equipment is being protected |
| EMI/RFI noise filtering |
| Wide variety of color options aid in identifying different types of equipment or applications |
| Point of use protection for up to 18000 A of surge current total |
| Audible alarm to indicate loss of surge protection and also for hidden locations (can be silenced) |
| Rated at NEMA 5-15R |
| 1/2 hp power rating |
| Brass locking pins |
| Brass-plated steel ground clips |
| Delrin® acetal shutter Mechanism |
| Wiring module leads identified in accordance with UL498 |
| 720 Joules rating |
| -30 dB at 500 kHz to 30 MHz noise rejection |
| 5000 A short circuit current rating |
| Self-grounding |
| Tamper-resistant |
| Indicator light diagnostics |
