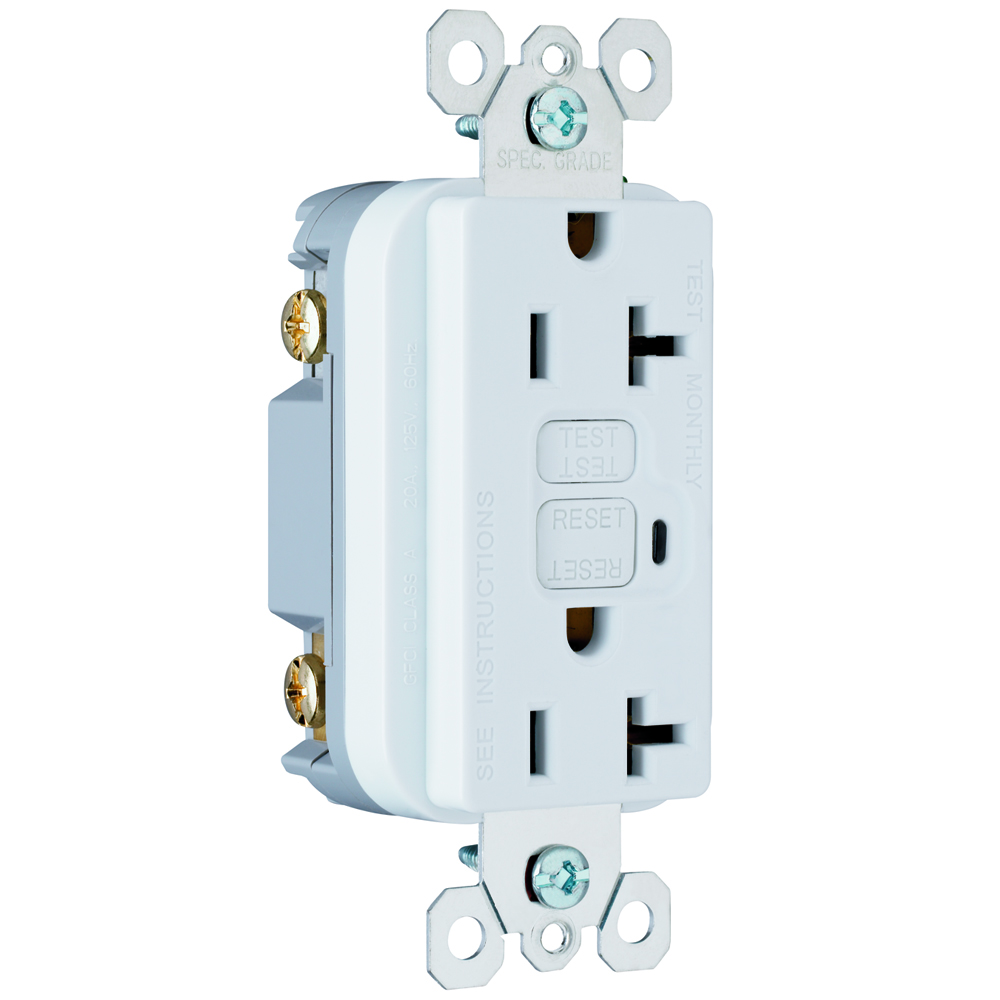

Legrand® Pass & Seymour® TradeMaster® 2095-W Duplex GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
GFCI Receptacles
1334959
MFG #: 2095-W
Pass & Seymour®
22.27000
/ ea
Legrand® Pass & Seymour® TradeMaster® Duplex GFCI Receptacle, Series: 2095, 125 VAC, 15 A, 60 Hz, 2 Pole, 3 Wires, NEMA 5-20R, Grade: Specification, -35 to 66 deg C, Wire Lead Terminal, Thermoplastic, White, 4.2 in H x 1.7 in W x 0.9 in D
- Features
| Safelock protection, auto ground, trip light indicator |
| SafeLock™ protection - if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected |
| Prevents line-load reversal miswire no power to the face or downstream receptacles if wire incorrectly |
| Exceeds UL943 voltage surge requirements, survives 100x the required UL 3kA/6kV voltage surge test cycles |
| Trip indicator light (red lamp) |
| Ground screw has back wire clamp for easy installation |
| 1/4 in thinner than competitor's GFCIs leaves more room for wires in the box |
| Mounting screws are shipped captive in the device and wall plate for easier installation |
| High impact resistant thermoplastic construction |
| Extra long strap |
| Button colors match the device face |
| Dual-direction test and reset buttons |
| Class a rated GFCI |
| Supplied with matching TP26 nylon wall plate |
| Tri-drive screws |
| GFCIs with auto-ground assure a positive ground to metal box |
| 1500 V dielectric strength |
| 10 to 14 AWG Solid/Stranded Copper Wire |
