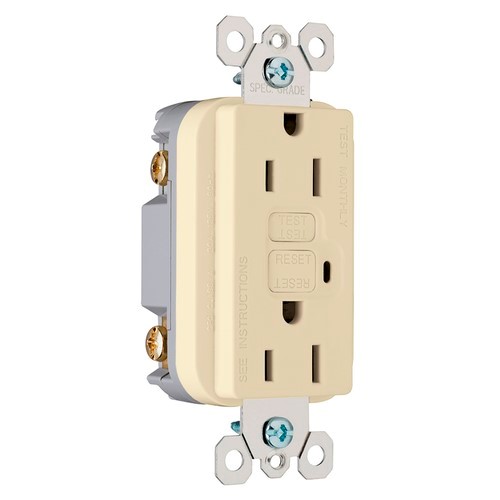

Legrand® Pass & Seymour® TradeMaster® 1595-I Duplex GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
GFCI Receptacles
PDW~3283823
MFG #: 1595-I
Pass & Seymour®
17.66000
/ ea
Legrand® Pass & Seymour® TradeMaster® Duplex GFCI Receptacle, Series: 1595, 125 VAC, 15 A, 60 Hz, 2 Pole, 3 Wires, NEMA 5-15R, Grade: Specification, -35 to 66 deg C, Wire Lead Terminal, Nylon, Ivory, 4.2 in H x 1.72 in W x 0.9 in D
- Features
Safelock protection, auto ground, trip light indicator |
SafeLock™ protection - if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected |
Prevents line-load reversal miswire no power to the face or downstream receptacles if wire incorrectly |
Exceeds UL943 voltage surge requirements, survives 100x the required UL 3kA/6kV voltage surge test cycles |
Trip indicator light (red LED) |
Ground screw has back wire clamp for easy installation |
1/4 in thinner than competitor's GFCIs leaves more room for wires in the box |
Mounting screws are shipped captive in the device and wall plate for easier installation |
High impact resistant thermoplastic construction |
Extra long strap |
Button colors match the device face |
Dual-direction test and reset buttons |
Class a rated GFCI |
Supplied with matching TP26 nylon wall plate |
Tri-drive screws |
GFCIs with auto-ground assure a positive ground to metal box |
0.03 in brass contacts |
0.05 in zinc plated steel mounting straps |
10 to 14 AWG Solid/Stranded Copper Wire |
