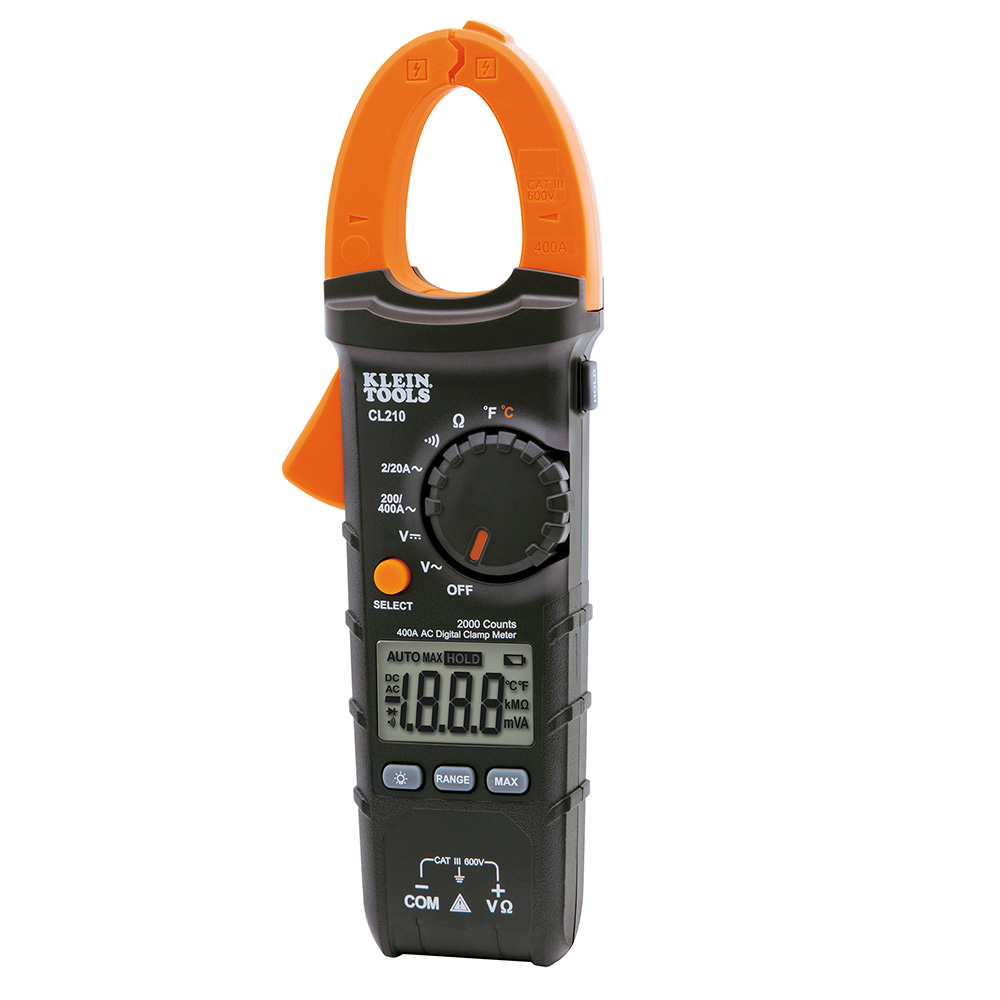

Klein® CL210 Clamp Meter, 400 A at 600 VAC/VDC, 20 mOhm, 45/400 Hz, 1-1/8 in Jaw, LCD Display
Clamp Meters
935688
MFG #: CL210
Klein Tools®
59.97000
/ ea
The CL210 is an auto-ranging digital clamp meter that measures AC current via the clamp, AC/DC voltage, resistance and continuity via test leads and temperature via a thermocouple probe.
- http://www.kleintools.com(Seller Home Page URL)
- Install Instructions 1 URL - CL210_Instructions.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - cl320kit_sds(Safety Data Sheet URL)
- Spec Sheet 1 URL - Klein_CL110_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Video - https://youtube.com/embed/jUzWiDAX524(Video)
- Spec Sheet URL - Clamp-Meter-Selection-Guide-2019.pdf(Spec Sheet URL)
- Warranty URL - warranty(Warranty URL)
- Applications
- Features
| Measures AC Current |
| Features Low Battery Indicator |
| Backlit display for clear readings, low battery indicator |
| Plastic enclosure type |
| Measures AC current via the clamp and AC/DC voltage, resistance and continuity via test leads |
| Resistance and continuity via test leads |
| Powers off automatically after 15 min of non-use to conserve battery life |
| 2 deg pollution, 3.3 ft drop protection, 6562 ft operating altitude, 14 to 122 deg F storage temperature, plastic enclosure |
| AC current range 2 A with accuracy of +/-(2.5% + 30 digits), 1 mA resolution, 20 A with accuracy of +/-(2% + 10 digits), 10 mA resolution, 200 A with accuracy of +/-(2% + 10 digits), 100 mA resolution, 400 A with accuracy of +/-(2% + 10 digits), 1 A resolution |
| Resistance range - 200 Ohm with accuracy of +/-(1.2% + 5 digits), 0.1 Ohm resolution, 2 kOhm with accuracy of +/-(1.2% + 3 digits), 1 Ohm resolution, 20 kOhm with accuracy of +/-(1.2% + 3 digits), 10 Ohm resolution, 200 kOhm with accuracy of +/-(1.2% + 3 digits), 100 Ohm resolution, 2 MOhm with accuracy of +/-(1.2% + 3 digits), 1 kOhm resolution, 20 MOhm with accuracy of +/-(2% + 5 digits), 10 kOhm resolution |
| AC voltage range - 200 mV with accuracy of +/-(2.5% + 10 digits), 0.1 mV resolution, 2 V with accuracy of +/-(2% + 5 digits), 1 mV resolution, 20 V with accuracy of +/-(2% + 5 digits), 10 mV resolution, 200 V with accuracy of +/-(2% + 5 digits), 100 mV resolution, 600 V with accuracy of +/-(2% + 5 digits), 1 V resolution |
| DC voltage range - 200 mV with accuracy of +/-(1% + 8 digits), 0.1 mV resolution, 2 V with accuracy of +/-(1% + 3 digits), 1 mV resolution, 20 V with accuracy of +/-(1% + 3 digits), 10 mV resolution, 200 V with accuracy of +/-(1% + 3 digits), 100 mV resolution, 600 V with accuracy of +/-(1% + 3 digits), 1 V resolution |
