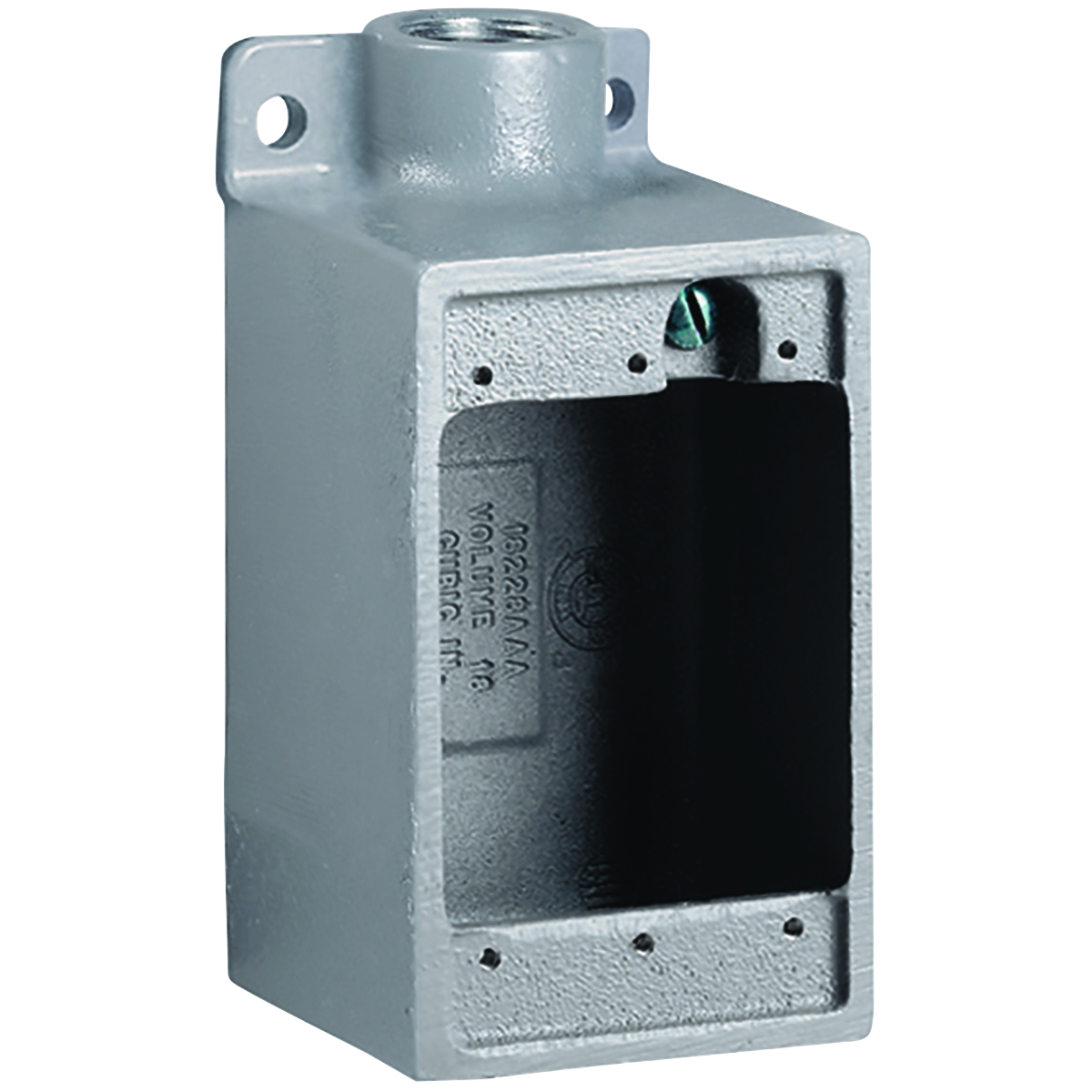

Killark® FD-1 FD Series Dead-End Device Box With Internal Ground Screw, Aluminium, 28 cu-in, 1 Gangs, 1 Outlets
Device Boxes
443530
MFG #: FD-1
Killark
49.21000
/ ea
Killark® Device Box, Dead-End, Series: FD Series, 1 Outlet, 1 Gang, 1/2 in Hub, Tapered Threaded Hub, Deep, NEMA FB-1, Lug Mount, 28 cu-in, Aluminium, Powder Coated, Gray, 4-5/8 in L x 2-7/8 in W x 2 in D
- http://www.hubbell-killark.com/(Seller Home Page URL)
- Line Drawing URL - 11161_M2T749CIRLH6WSU5.pdf(Line Drawing URL)
- Spec Sheet URL - 11161_H7W189Q4IOCBM6ZK.pdf(Spec Sheet URL)
- Tech Drawing URL - KIL_FD-1_2D.dwg(Tech Drawing URL)
- Warranty URL - 11161_ID-WAR-Warranty_Front_Pages_DNC_4-1-2011.pdf(Warranty URL)
- Applications
- Features
| Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). |
| Tapered threads (NPT with integral bushings) |
| Internal grounding screw |
| Suitable for use in wet locations when used with gasket covers |
| Cast iron is suitable for concrete use |
| Accommodates wiring devices and provides opening to splice, tap, or pull conductors |
| Electrostatically Applied Powder Coated finish |
| Copper-Free Aluminum Material |
| 5/16 in Dia Lugs mountingWithout Knockout |
