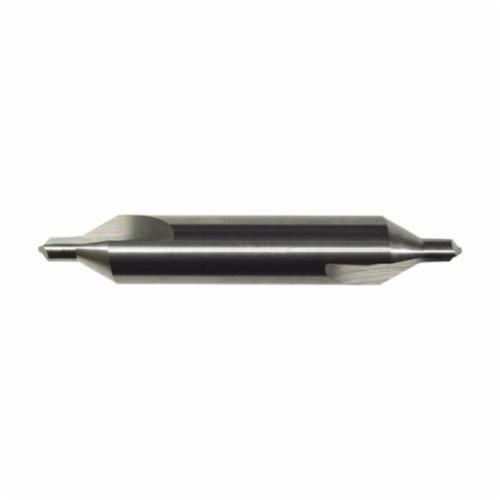

KEO 19032 Double End Plain Combined Drill and Countersink, #0, 60 deg Included, Carbide, Uncoated
Custom_Product_Images_Illustration
KEO 19032 Double End Plain Combined Drill and Countersink, #0, 60 deg Included, Carbide, Uncoated
SKU427247
MFGR #103-019032
Your Cost: $17.00/ea
List: KEO Combined Drill and Countersink, Double End Plain, #0, 1/32 in Point Dia, 1/8 in Body Dia, 1-1/2 in Overall Length, 1 Flutes, Straight Flute, 1/8 in Shank, Round Shank, 60 deg Included Angle, Right Hand Cutting, Carbide Cutting Edge, Carbide, Uncoated, Applicable Materials: Steel and Other Ferrous Metals
KEO Combined Drill and Countersink, Double End Plain, #0, 1/32 in Point Dia, 1/8 in Body Dia, 1-1/2 in Overall Length, 1 Flutes, Straight Flute, 1/8 in Shank, Round Shank, 60 deg Included Angle, Right Hand Cutting, Carbide Cutting Edge, Carbide, Uncoated, Applicable Materials: Steel and Other Ferrous Metals
Body Diameter 1/8 in Catalog Number 103-019032 Connection Type Shank Country of Origin US Cutting Diameter 0.0313 in Cutting Direction Right Hand Cutting Edge Material Carbide Flute Type Straight Functional Length 0.1202 in Gross Weight Per Pack 1 lb Line Drawing Dimensions A=118.0° A1=60.0° DC=0.0313" DCONms=0.1250" L=1.5000" LF=0.1202" LU=0.1202" Number of Cutting Edges 2 Number of Flutes 1 Overall Length 1-1/2 in Point Diameter #0 Shank Diameter 0.1250 in Shank Length 0.7500 in Shank Size 1/8 in Shank Type Round Standards ISO 9001:2008 Type Double End Plain UNSPSC 23241603 UPC 11 67014519032 UPC 12 67014519032 Usable Length 0.1202 in Stock Status NONSTOCK Brand KEO Manufacturer ARCH Cutting Tools Applicable Materials Steel and Other Ferrous Materials Finish Bright Included Angle 60 ° Material Carbide Point Angle 118 ° KEO plain type solid carbide combined drill and countersinks with straight flutes are used for producing center holes in components or workpieces which require machining between centers Designed for producing center holes in components or workpieces which require machining between centers
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Body Diameter | 1/8 in |
| Catalog Number | 103-019032 |
| Connection Type | Shank |
| Country of Origin | US |
| Cutting Diameter | 0.0313 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Flute Type | Straight |
| Functional Length | 0.1202 in |
| Gross Weight Per Pack | 1 lb |
| Line Drawing Dimensions | A=118.0° A1=60.0° DC=0.0313" DCONms=0.1250" L=1.5000" LF=0.1202" LU=0.1202" |
| Number of Cutting Edges | 2 |
| Number of Flutes | 1 |
| Overall Length | 1-1/2 in |
| Point Diameter | #0 |
| Shank Diameter | 0.1250 in |
| Shank Length | 0.7500 in |
| Shank Size | 1/8 in |
| Shank Type | Round |
| Standards | ISO 9001:2008 |
| Type | Double End Plain |
| UNSPSC | 23241603 |
| UPC 11 | 67014519032 |
| UPC 12 | 67014519032 |
| Usable Length | 0.1202 in |
| Stock Status | NONSTOCK |
| Brand | KEO |
| Manufacturer | ARCH Cutting Tools |
| Applicable Materials | Steel and Other Ferrous Materials |
| Finish | Bright |
| Included Angle | 60 ° |
| Material | Carbide |
| Point Angle | 118 ° |
| KEO plain type solid carbide combined drill and countersinks with straight flutes are used for producing center holes in components or workpieces which require machining between centers |
| Designed for producing center holes in components or workpieces which require machining between centers |
