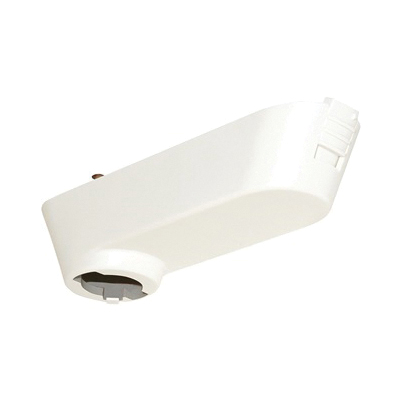

Juno® Trac-Master® T537WH Low Voltage Electronic Transformer, 0.64 A at 120 VAC, 20 kHz, >0.95
Track Lighting Transformers
76934
MFG #: T537WH
Juno®
100.58000
/ ea
Juno® Trac-Master® low voltage designer transformers attach to all Trac-Master® and Trac-Lites™ trac. These low profile, 12 VAC, 75 VA electronic transformers feature an On/Off switch and are compatible with 12 VAC halogen fixtures consuming up to 75 W.
- Applications
- Features
| Trac Lighting |
| Designed for 40000 hr operating life with repeated switching in 40 deg C ambient and 90% relative humidity environment |
| Designed to withstand the intense heat produced by incandescent trac lighting |
| Transformer may be installed on Trac-Master® or Trac-Lites™ series trac (or designated monopoints) and may be used to operate all Trac-Master® low voltage MR11 or MR16 lampholders and pendants |
| Transformer output is short circuit protected |
| Miniature 2-pin connector provides quick electrical connection to lamp holders |
| High impact polycarbonate housing, integral on/off switch |
| 75 W wattage |
| 15% THD |
| 1 sec high potential withstand at 1240 VAC |
| 1:1 regulation-input voltage, output voltage |
| 90% +/- 2% circuit efficacy |
| Tolerates sustained case temperatures of 100 deg C |
| All components meet rigid heat tolerance standards and pass over temperature life tests |
| Designed to accept Juno® low voltage lampholders and 12 VAC halogen lampholders or pendants |
| Recommended for use with incandescent (halogen) lamps only |
