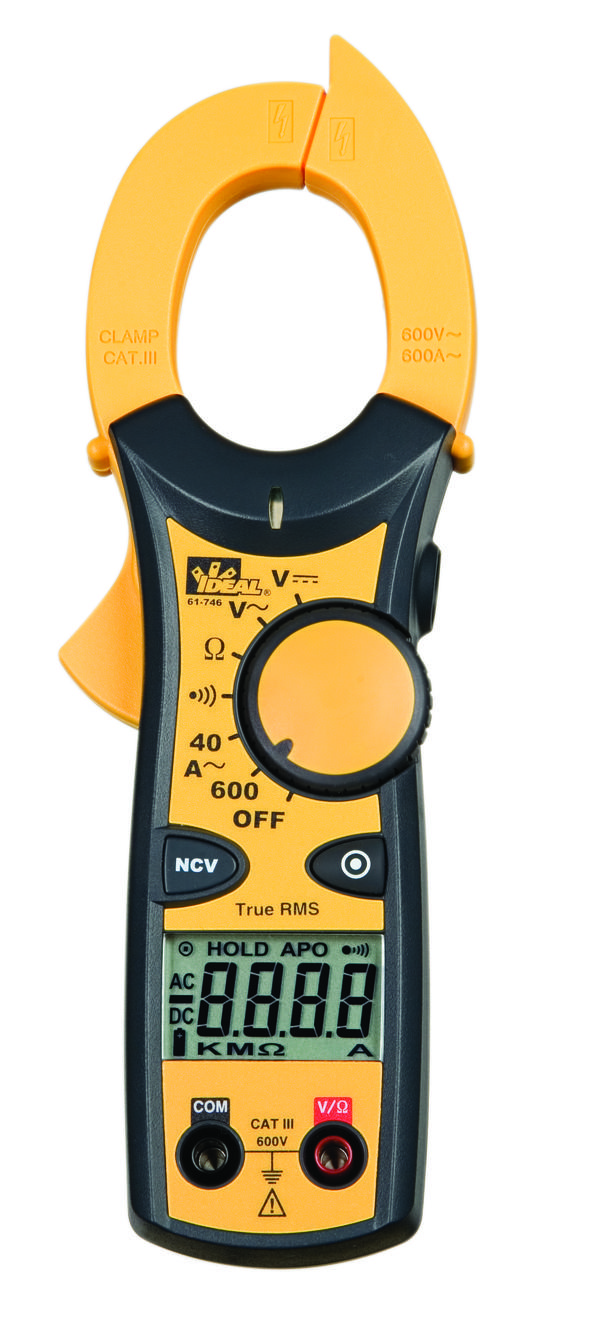

Ideal® 61-746 740 Clamp Meter, 600/400 VAC/VDC, 600/400 A, 400 kOhm, 50 to 500 Hz, 1-1/4 in Jaw, LCD Display
Clamp Meters
455501
MFG #: 61-746
IDEAL®
192.47000
/ ea
For electricians looking for a dependable, affordable 600A clamp meter, it?s tough to beat the IDEAL 740 Series. From a non-contact voltage indicator at the tip of the jaws, to a large easy-to-read display, the 740 Series clamps make current measurements simple and reliable. The compact frame fits comfortably in the hand and makes it convenient in tight panels. And for those working in harmonic environments, the 61-746 features True RMS measurements
- Brochure URL - BRO_61-744-746_manual_v2.pdf(Brochure URL)
- Catalog 1 URL - IDEAL_61_744_1_Catalog.pdf(Catalog 1 URL)
- Owners Manual URL - IDEAL_61_746_Manual.pdf(Owners Manual URL)
- Material Composition - US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF(Material Composition)
- http://www.idealindustries.com(Seller Home Page URL)
- Install Instructions URL - IDEAL_61_744_Installation_Sheet.pdf(Install Instructions URL)
- Spec Sheet URL - prodDetail.do?prodId=61-746(Spec Sheet URL)
- Features
| Features: Measures Up To 600AAC; Non-Contact Voltage Indicator (70V - 600VAC); Tapered Jaws With Hook Tip; Auto/Manual Ranging; Data Hold; Auto Power Off; Low Battery Indicator; CAT III- 600V; 2-Year Warranty; Auto/Manual Ranging Clamp Meter; Non-Contact |
| Measures up to 600 A AC |
| Non-contact voltage indicator (70 V - 600 VAC) |
| Tapered jaws with hook tip |
| Auto/manual ranging |
| Data hold |
| Approximately after 10 minutes of non-use |
| Low battery indicator 400 hrs continuous with alkaline (61-744), 250 hrs continuous with alkaline (61-746), dual backlit display |
| Stated accuracy at 23 deg C +/- 5 deg C, < 75 R.H accuracy |
| 3-3/4 digit LCD |
| 6561.7 ft altitude, 32 deg F to 122 deg F (0 deg C to 50 deg C) at < 70% R.H operating environment, (2) 1.5V AAA batteries (NEDA R03) power supply |
| AC current - 40 A/400 A/600 A (50 Hz - 60 Hz) at 1.7% + 10 digits accuracy, 40 A/400 A/600 A (60 Hz - 400 Hz) at 3 % + 10 digits accuracy, 600 A AC overload protection |
| Resistance 400 Ohm/4 kOhm/40 kOhm/400 kOhm at (1% + 4 digits) accuracy, 4 MOhm at (1.5% + 4 digits) accuracy, 40 MOhm at (3.0% + 5 digits) accuracy, 600 VDC or VAC rms overload protection resistance |
| AC voltage 400V (50Hz - 500Hz) at 1.2% + 8 digits accuracy, 600V (50Hz - 500Hz) at 1.5% + 8 digits accuracy, 600 VDC or AC rms overload protection |
| DC voltage 0 to 30 VDC at (0.2% + 2 counts) accuracy |
