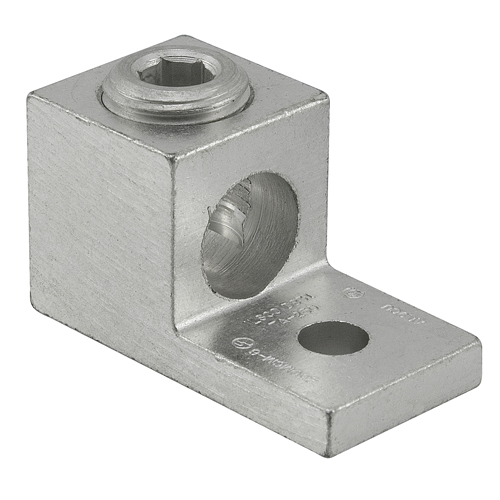

ILSCO® TA-250 TA Series Dual Rated Mechanical Terminal Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 5/16 in Stud
Mechanical Terminal Lugs
379629
MFG #: TA-250
ILSCO®
11.95000
/ ea
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 5/16 in Stud, 1 Bolt Hole, 0.992 in L x 0.99 in W x 0.25 in THK Tongue, Straight Tongue, 2000 VAC, 5/16 in Hex, 90 deg C, Aluminum, Electro-Plated Tin, 2 in L x 1 in W x 1.122 in H
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Install Instructions URL - ILSCO_AU_0_Installation_Instructions.pdf(Install Instructions URL)
- Spec Sheet URL - 10975_WVPQBTFE42LGK9IY.pdf(Spec Sheet URL)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Tech Drawing URL - D0831-22.PDF(Tech Drawing URL)
- Spec Sheet URL - TA.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_2SXVK0OBP6MULQHG.pdf(Tech Drawing URL)
- Features
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;test |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Chamfered wire entry provides ease of installation |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Provides low contact resistance |
| 1-stud |
| Suitable for use with either copper or aluminum conductors |
| 25/Pack, Standard Package |
