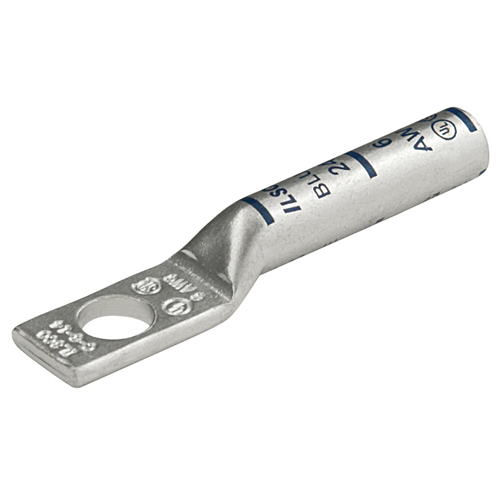

ILSCO® CLNS-600-12 SureCrimp® CLNS 1-Hole Compression Lug Without Sight Hole, 600 kcmil, 1/2 in Stud, I-94, Copper

Lug Compression Connectors
946522 MFG #: CLNS-600-12
ILSCO®
65.91000 / ea
10975_7BWTEGDKR6JFVC5M
ILSCO® SureCrimp® Compression Lug, 1-Hole, Series: CLNS, 600 kcmil Conductor, Die Code: I-94, 600 VAC, 1/2 in Stud, 1.25 in L x 1.712 in W Tongue, 4.746 in Overall Length, Long, 2.687 in L Barrel, 90 deg C, Copper, Green, 0.92 in ID x 1.187 in OD
QTY
Add to Wishlist
  • Features
Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die
Manufactured from high strength seamless copper tubing, electro-tin plated
Color coded
Offers maximum conductivity and excellent crimping characteristics
Provides low contact resistance
For easy conductor insertion
Identifies the proper compression die
Application versatility
Reduces inventory requirements
Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
1 mounting hole
Alternate conductor size of 400 G, H, I, K, M flexible 444.4 DLO
250 to 600 kcmil expanded conductor size
Without sight hole
