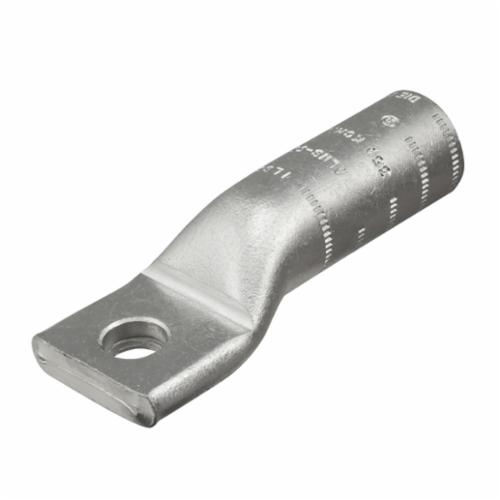

ILSCO® ACN-8 ClearChoice® ACL 1-Hole Compression Lug, 8 AWG, #10 Stud, 2, Aluminum
Lug Compression Connectors
748891
MFG #: ACN-8
ILSCO®
498.44000
/ ea
ILSCO® ClearChoice® Compression Lug, 1-Hole, Series: ACL, 8 AWG Conductor, Die Code: 2, 600 VAC, #10 Stud, 0.688 in L x 0.563 in W x 0.095 in THK Tongue, 1-7/16 in Overall Length, Chamfered/Long, 0.49 in L Barrel, 90 deg C, Aluminum, Blue, 0.155 in ID x 0.3 in OD
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Spec Sheet URL - ACL.pdf(Spec Sheet URL)
- Spec Sheet 2 URL - ILSCO_2ACL_1_0_2_Specification_Sheet.pdf(Spec Sheet 2 URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Install Instructions URL - ILSCO_ELT_1_Installation_Instructions.pdf(Install Instructions URL)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Tech Drawing URL - CATPG63.PDF(Tech Drawing URL)
- Features
| Features: {Manufactured from high strength aluminum alloy and Electro-Tin plated.} {Chamfered barrel and Prefilled with DE-OX.} {UL 486A/B 90° C Listed and is CSA Certified for 600 Volts.} {If proper high voltage spacings and insulation techniques ar |
| Electro tin plated |
| Manufactured from high strength aluminum alloy |
| Chamfered barrel |
| Color coded |
| Clearly marked with wire size and die index for ILSCO tools, proper number and location of crimps |
| Prefilled with DE-OX |
| Color coded end caps inserted in barrel |
| Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used |
| Provides low contact resistance |
| Provides maximum conductivity and excellent crimping characteristics |
| Provides easy conductor insertion |
| Provides visual tooling recommendation for ILSCO or standard industry tools |
| Provides easy identification and tooling recommendation |
| Prevents oxides from forming |
| Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die |
| Application versatility |
| 1 mounting hole |
| Copper - Class B concentric, Class B compressed, Class C concentric, range taking when used with IDT-12-N Tool, Listed with Ilsco tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, IDTB-12, ILC-15, MT-25, 94285, IDT-12, IDT-12H |
| Expanded conductor size of 8 AWG |
| 0.5525 in L Strip |
