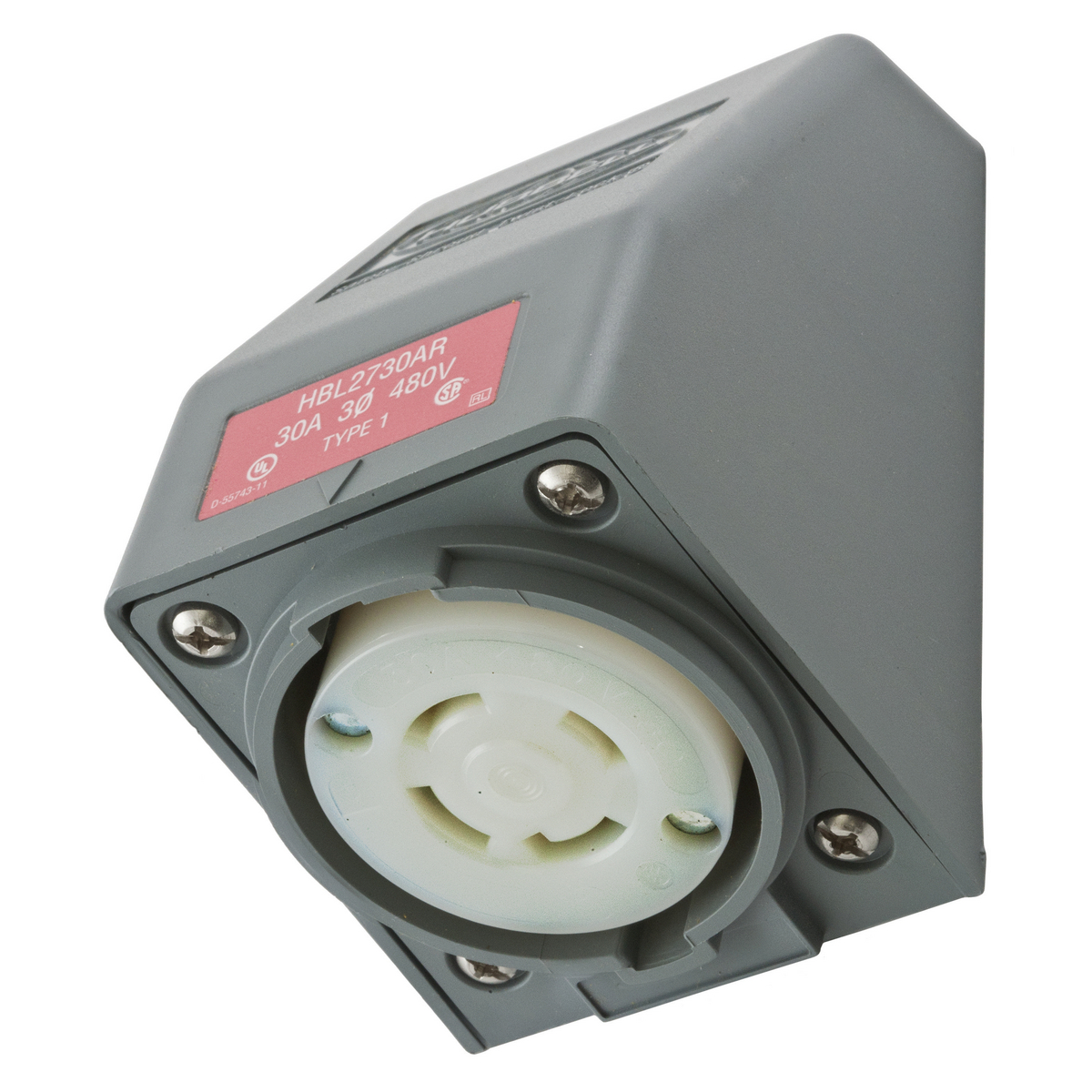

Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2730AR Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Gray/White
Locking Devices
91950
MFG #: HBL2730AR
Hubbell Wiring Device-Kellems
90.00000
/ ea
Hubbell® Twist-Lock® Safety-Shroud® Locking Receptacle, 480 VAC, 30 A, 10 hp, 3 Poles, 4 Wires, NEMA L16-30R, -40 to 75 deg C, Screw Terminal, PBT, Gray/White, 4.57 in W x 2.85 in W x 3.14 in D
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_8YFQ0LDAK54OXJ6U.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537662268326.pdf(Install Instructions URL)
- Line Drawing URL - 11456_TLPYQ0ZX7E8D1IFU.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_ULCIBT98PDRG40O3.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL2730AR_M7368_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial Shrouded |
| Angled Housing |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #8-32 brass terminal and ground screw |
| 10 AWG terminal accommodation |
| Certified for current interrupting at full rated current interrupting |
| Steel zinc plated mounting screw |
