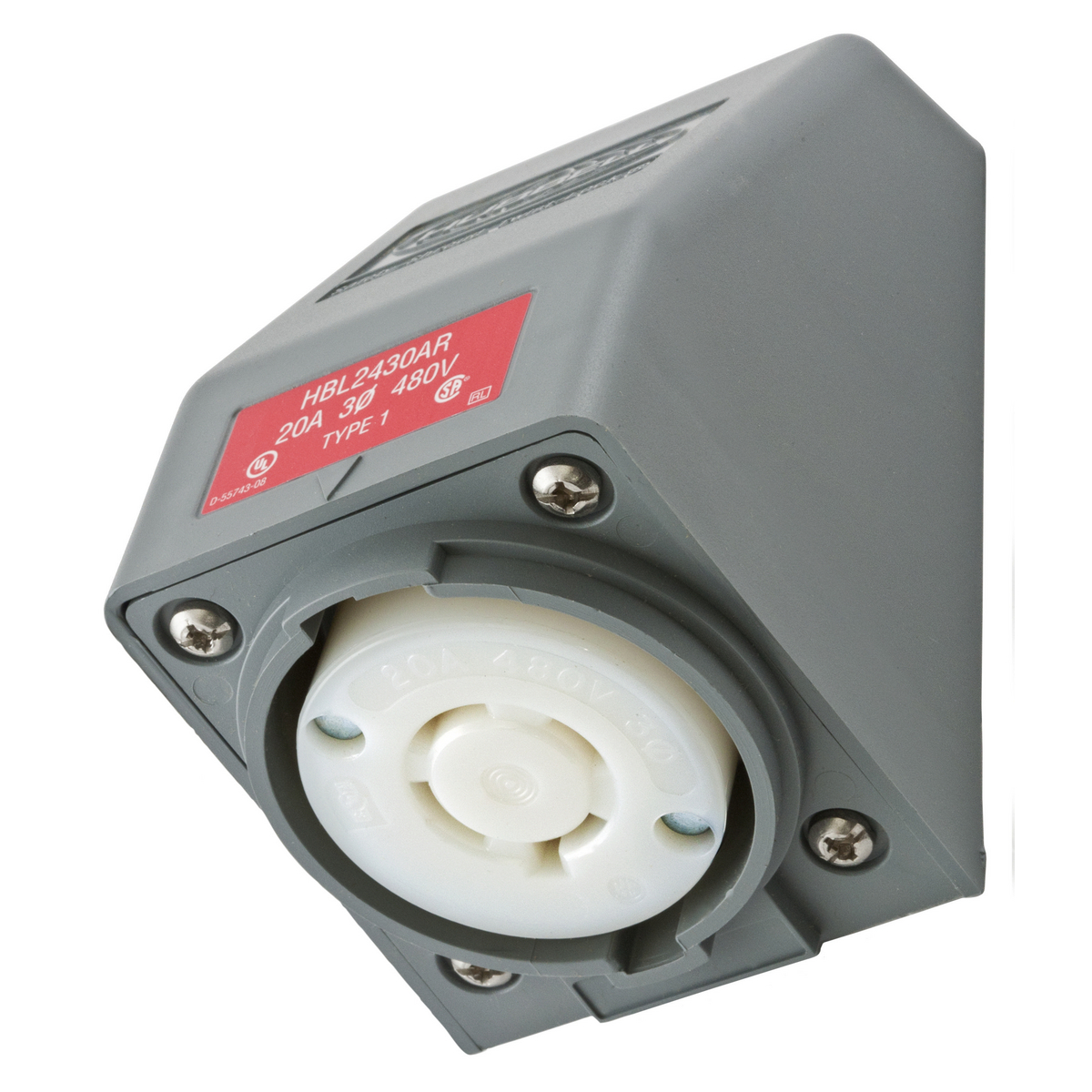

Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2430AR Locking Receptacle, 480 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2430AR Locking Receptacle, 480 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
SKU113063
MFGR #HBL2430AR
Your Cost: $58.42/ea
Hubbell® Twist-Lock® Safety-Shroud® Locking Receptacle, 480 VAC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, -40 to 75 deg C, Screw Terminal, PBT, Gray/White, 4.57 in W x 2.85 in W x 3.14 in D
Hubbell® Twist-Lock® Safety-Shroud® Locking Receptacle, 480 VAC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, -40 to 75 deg C, Screw Terminal, PBT, Gray/White, 4.57 in W x 2.85 in W x 3.14 in D
Application Heavy Duty Industrial Shrouded ARRA Compliant C Buy American Compliant C Catalog Number HBL2430AR Connection Screw Terminal Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 4.57 in H x 2.85 in W x 3.14 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.20 in Height [Metric] 8.1280 cm Horsepower 5 hp Length 5.20 in Length [Metric] 13.2080 cm Material Thermoplastic Mounting Screw Mount NEMA Rating L16-20R Number Of Poles 3 Phase 3 Returnable Y Size 4.77 in x 2.85 in x 3.14 in Standard Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 Standards UL 498CSA C22.2 No. 42 Certified NEMA WD1/WD5 Sub Brand Twist-Lock Devices Temperature Rating -40 to 75 °C Terminal Type Screw Type Angled Receptacle UNSPSC 39121406 UPC 11 78358523456 UPC 12 783585234564 Wattage 9,600 W Width 3.30 in Width [Metric] 8.3820 cm Wire Size #16 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray/White Number of Wires 4 Voltage Rating 3-Phase Delta 480 VAC Heavy Duty Industrial Shrouded Angled Housing Withstands 2000 VAC dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise #10-32 bronze terminal and ground screw 12 AWG terminal accommodation Certified for current interrupting at full rated current interrupting Steel zinc plated mounting screw
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Heavy Duty Industrial Shrouded |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL2430AR |
| Connection | Screw Terminal |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 4.57 in H x 2.85 in W x 3.14 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.20 in |
| Height [Metric] | 8.1280 cm |
| Horsepower | 5 hp |
| Length | 5.20 in |
| Length [Metric] | 13.2080 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | L16-20R |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Size | 4.77 in x 2.85 in x 3.14 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards | UL 498CSA C22.2 No. 42 Certified NEMA WD1/WD5 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Screw |
| Type | Angled Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358523456 |
| UPC 12 | 783585234564 |
| Wattage | 9,600 W |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | #16 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray/White |
| Number of Wires | 4 |
| Voltage Rating | 3-Phase Delta 480 VAC |
| Heavy Duty Industrial Shrouded |
| Angled Housing |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #10-32 bronze terminal and ground screw |
| 12 AWG terminal accommodation |
| Certified for current interrupting at full rated current interrupting |
| Steel zinc plated mounting screw |
