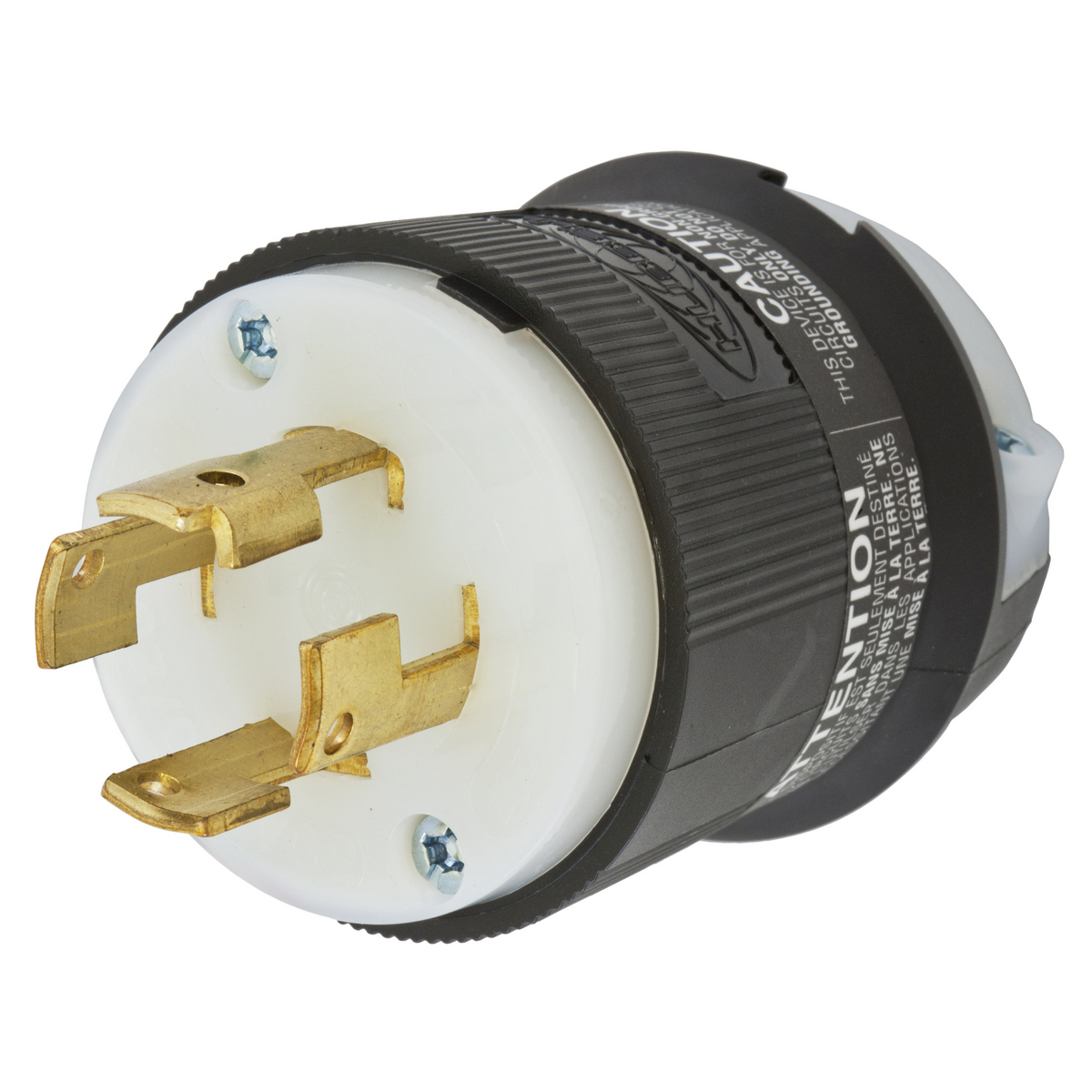

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3431C Locking Plug, 347/600 VAC, 30 A, 4 Poles, 4 Wires, Black/White
Locking Devices
26353
MFG #: HBL3431C
Hubbell Wiring Device-Kellems
75.62000
/ ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 347/600 VAC, 30 A, 4 Poles, 4 Wires, Industrial Grade, IP20 Enclosure, 3/8 to 1 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 in Dia x 2.75 in L
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_JDRWZK5Q0C34POAV.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_3Y0RMANLB5I29QC7.pdf(Line Drawing URL)
- Install Instructions 1 URL - WIRING_PD1731_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537667408095.pdf(Install Instructions URL)
- Line Drawing URL - WDK_HBL3431C_DRAWING_PDF.pdf(Line Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Tech Drawing URL - IDW_DOCUMENT_1537664647189.pdf(Tech Drawing URL)
- Spec Sheet URL - WIRING_HBL3431C_spec.pdf(Spec Sheet URL)
- Spec Sheet URL - 11456_HRCB9KEG7Z326TMJ.pdf(Spec Sheet URL)
- Applications
- Features
| Extra Heavy Duty Industrial |
| Standard Product |
| Clear, funnel shaped wire entry for ease of termination |
| Integral dust shield protects wiring chamber from dust or contaminants |
| Superior cord grip design protects terminations from excess strain |
| Ribbed nylon housing provides a secure grip and impact and chemical resistance |
| #10 to 32 bronze (white finish on neutral screw when used) multi-drive terminal screw |
| #10 to 32 bronze (green finish) multi-drive ground screw |
| Stainless steel cord clamp screw |
| Molded in or stamped on ratings |
| 2000 VAC minimum dielectric withstand voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 20 A, 12 AWG terminal accommodation |
| HB or better flammability |
| Non-NEMA Type |
| Ribbed nylon housing provides a secure grip and impact and chemical resistance |
| Superior cord grip design protects terminations from excess strain |
| Clear, funnel shaped wire entry for ease of termination |
| Integral dust shield protects wiring chamber from dust or contaminants |
| Non-grounding wire |
| Insulgrip® style |
