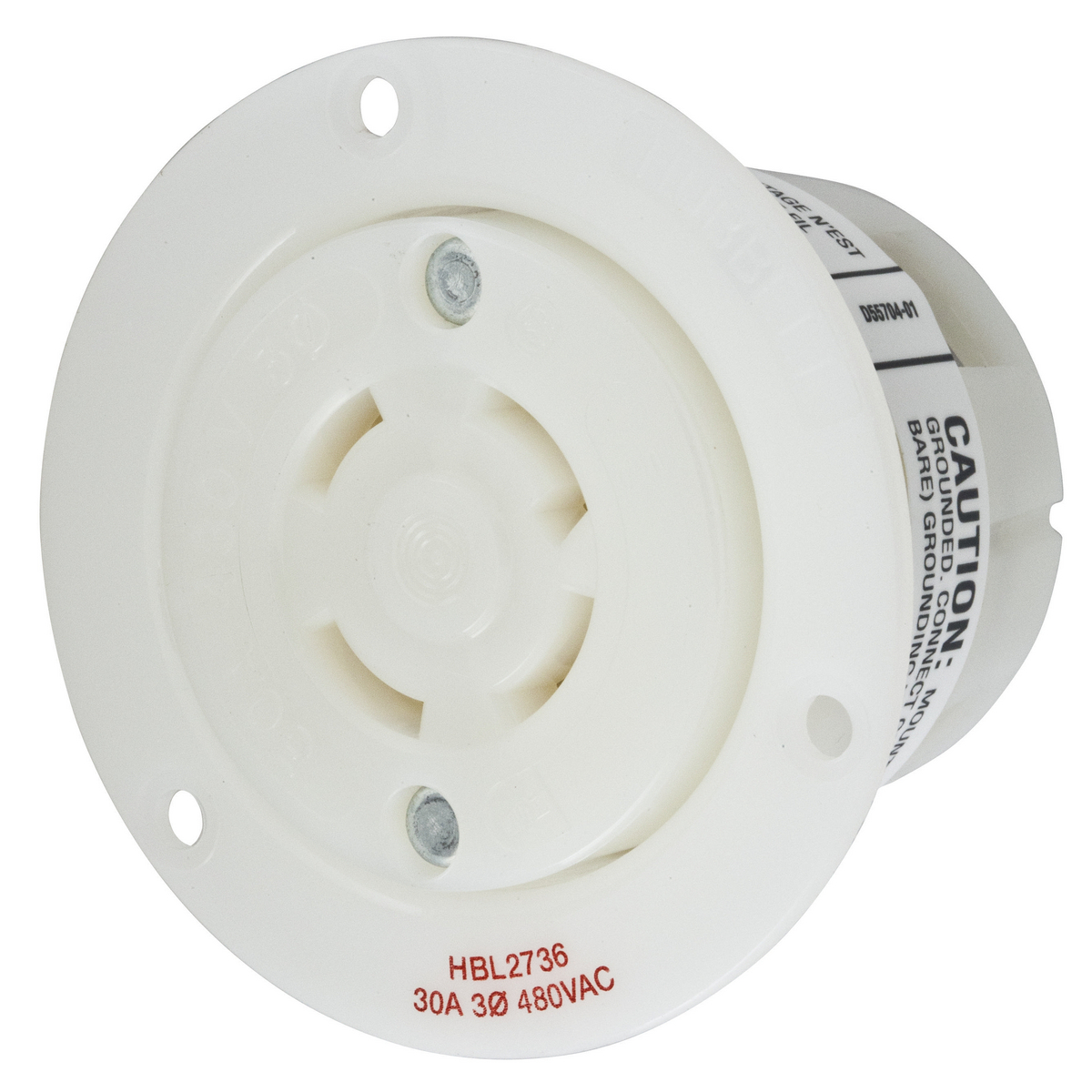

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2736 Flanged Standard Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, White
Locking Receptacles
26336
MFG #: HBL2736
Hubbell Wiring Device-Kellems
84.14000
/ ea
Hubbell Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. It's these and many other features that set Hubbell performance above all others.
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_4LKYG93VRFZ81UN5.pdf(Install Instructions 1 URL)
- Line Drawing URL - WDK_HBL2736_DRAWING_PDF.pdf(Line Drawing URL)
- Line Drawing URL - 11456_5G3VUA6S0CI9RTQB.pdf(Line Drawing URL)
- Install Instructions URL - IDW_DOCUMENT_1537663984991.pdf(Install Instructions URL)
- Install Instructions 1 URL - WIRING_PD1258_INSTALLINST.pdf(Install Instructions 1 URL)
- Spec Sheet URL - WIRING_HBL2736_spec.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Spec Sheet URL - 11456_YHI9JOQAUK678FEV.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL2736_M7912_ACAD_DRAWING.dwg(Tech Drawing URL)
- Tech Drawing URL(Tech Drawing URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| NO 10-32 multiple drive terminal screws (slotted, Phillips, Robertson) |
| Backwired terminations for ease of installation |
| Impact-resistant thermoplastic construction |
| Mounting screws included |
| 4-wire grounding |
| 0.031 in brass ground contact |
| Nickel-plated brass round head mounting screw material |
| 3-phase 480 VAC |
| Natural white nylon flanged casing material |
| Brass spring binding plate |
| Brass contact spring |
| Natural white nylon body contact carrier material |
| 30 A 10 AWG terminal accommodation |
| 2000 VAC minimum dielectric voltage withstand |
| Zinc plated multi drive steel body holding screw |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| V2 or better per UL94/CSA 22.2 No 0.17 flammability |
| -40 to 75 deg C maximum continuous (without impact) operating temperature |
