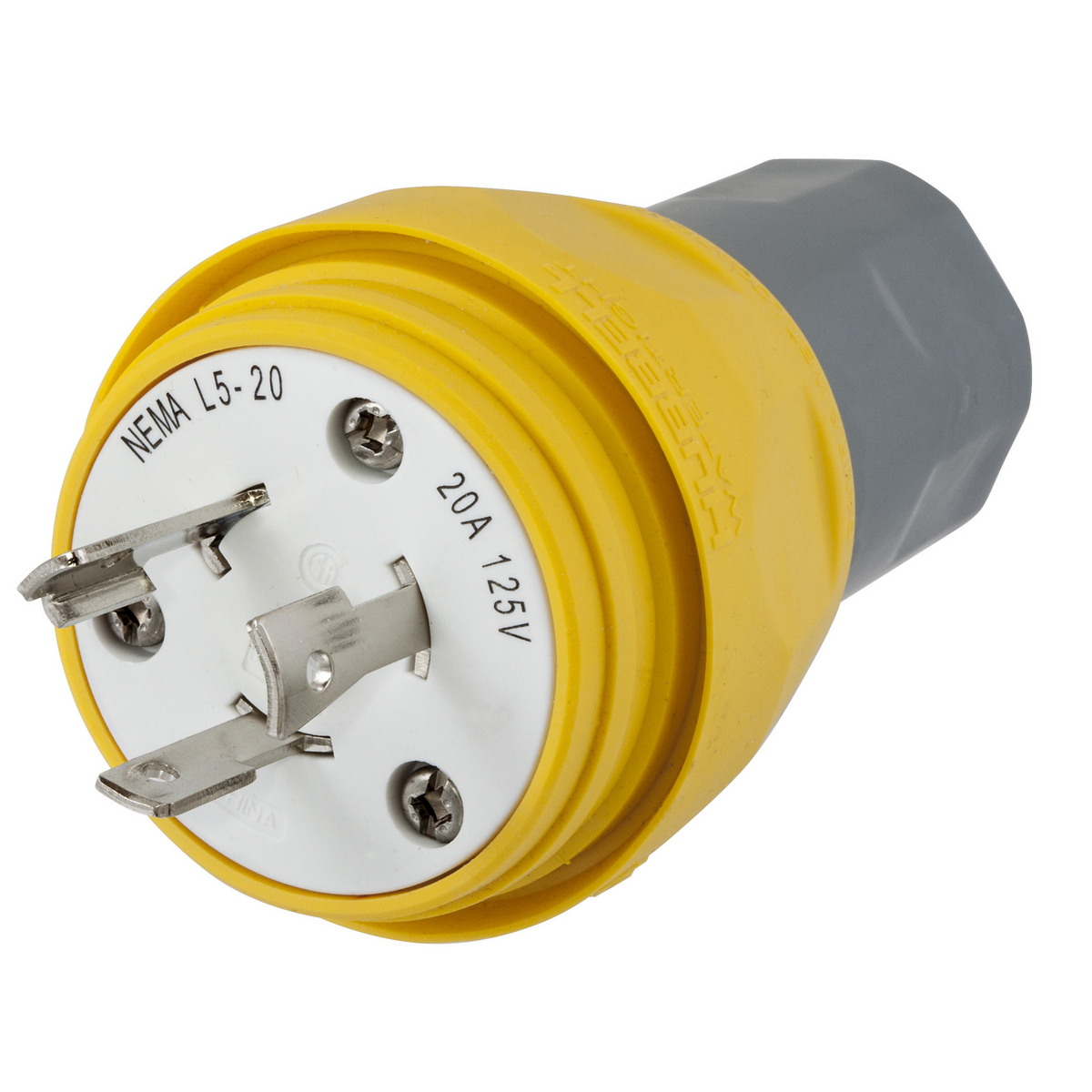

Hubbell Wiring Device-Kellems Twist-Lock® HBL26W47 Non-Shrouded Watertight Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Locking Plugs
847149
MFG #: HBL26W47
Hubbell Wiring Device-Kellems
46.60000
/ ea
Wiring Device-Kellems Twist-Lock® Locking Plug, Non-Shrouded Watertight, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA L5-20P, Industrial Grade, NEMA 4/4X/12/6/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 2.51 in Dia X 3.96 in L
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_5UCR9B6XD4EJHY13.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_4A9RJW53U0GIXY67.pdf(Line Drawing URL)
- Install Instructions URL - IDW_DOCUMENT_1487176398293.pdf(Install Instructions URL)
- Install Instructions 1 URL - WIRING_PD2635_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - WDK_HBL26W47_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet 1 URL - ID-SPE-v1-HBL26W47.pdf(Spec Sheet 1 URL)
- Tech Drawing URL - WIRING_HBL26W47_M12625_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Spec Sheet URL - 11456_ID-SPE-v1-HBL26W47.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Spec Sheet URL - WIRING_HBL26W47_spec.pdf(Spec Sheet URL)
- Applications
- Features
| Industrial/Commercial |
| Watertight |
| 2500 VAC minimum withstand dielectric voltage |
| Rated for current interruption per UL498 |
| 30 deg maximum at rated current temperature rise |
| All exposed materials are UV stabilized |
| White nylon blade holder |
| Clear polycarbonate terminal retainer material |
| Nickel plated brass blades |
| White nylon core |
| Black elastomeric bushing and cone seal |
| Nylon gotcha ring |
| PBT strain relief nut |
| Nickel plated brass terminal screw |
| Smooth body design minimizes collection points simplifying the wash down process |
| Strain relief nut always seals on the body, minimizing debris collection |
| Stainless steel hardware and corrosion-resistant connection points |
