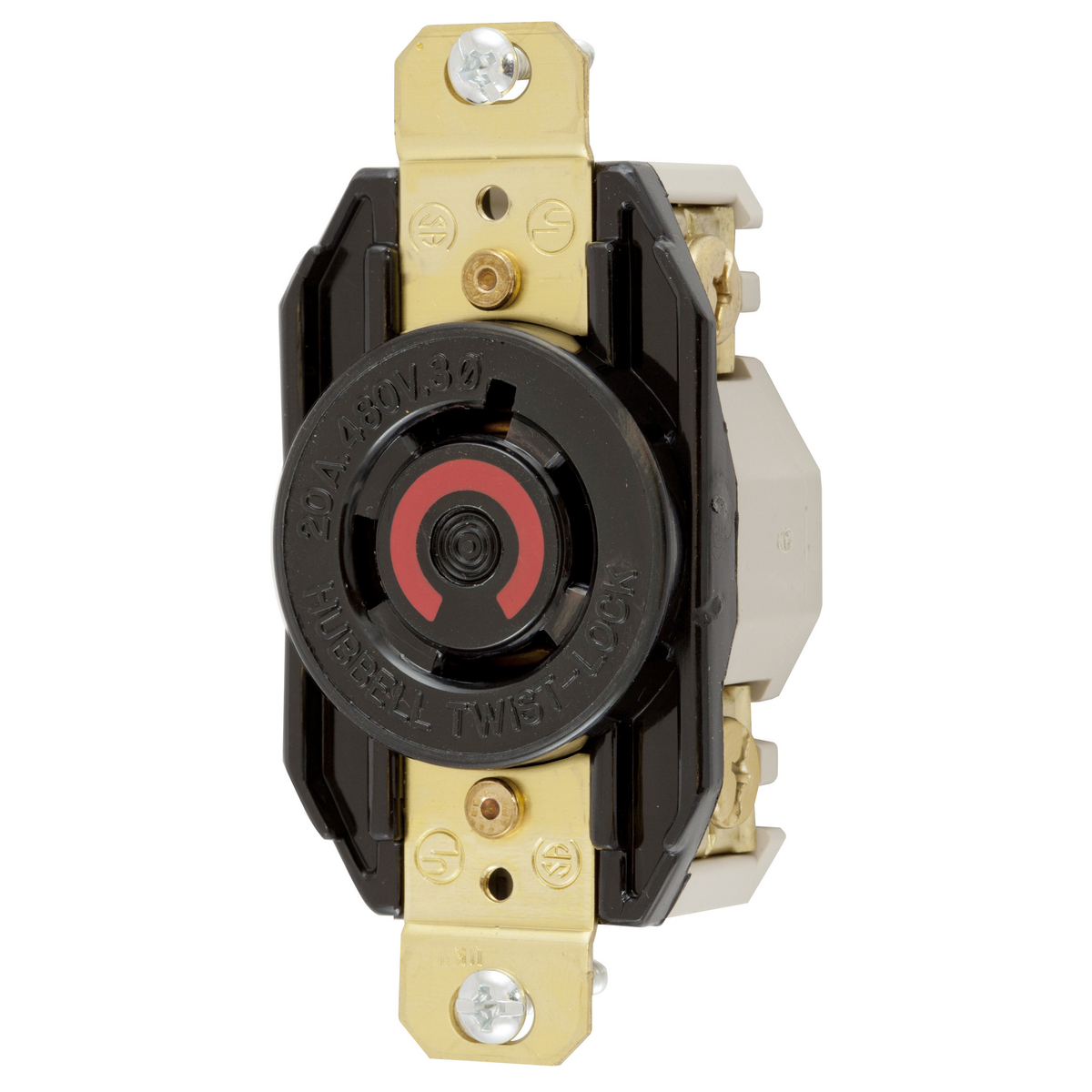

Hubbell Wiring Device-Kellems Twist-Lock® HBL2430 Single Locking Receptacle, 480 VAC, 20 A, 3 Poles, 4 Wires, Black
Locking Devices
26590
MFG #: HBL2430
Hubbell Wiring Device-Kellems
52.14000
/ ea
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_KX4Y5SDJ37G6VCI1.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537663235642.pdf(Install Instructions URL)
- Line Drawing URL - 11456_YFPV15TMRZ3L4S9X.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_EKM0W2X8CAGL7NZO.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537664696575.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| L16-20R NEMA configuration, standard |
| 0.04 in brass terminal clamp |
| #10-32 bronze (white finish on neutral screw when used) terminal screw material, #10-32 bronze (green finish) ground screw |
| 0.04 in brass contact spring, steel zinc plated mounting screw |
| Black nylon cover (top) material, nylon polyester base material |
| 0.04 in brass ground contact, 0.05 in brass bridge (mounting strap) |
| 0.04 in brass back plate, brass rivet |
| Stainless steel auto ground clip |
| Molded-in or stamped on ratings |
| 2000 VAC minimum dielectric withstand voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise |
| 20 A, 12 AWG wire size |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| HB or better per UL 94 or CSA 22.2 No. 0.6 flammability |
| Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection |
| Face color coding by voltage facilitates locating and mating of proper devices |
| All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems |
