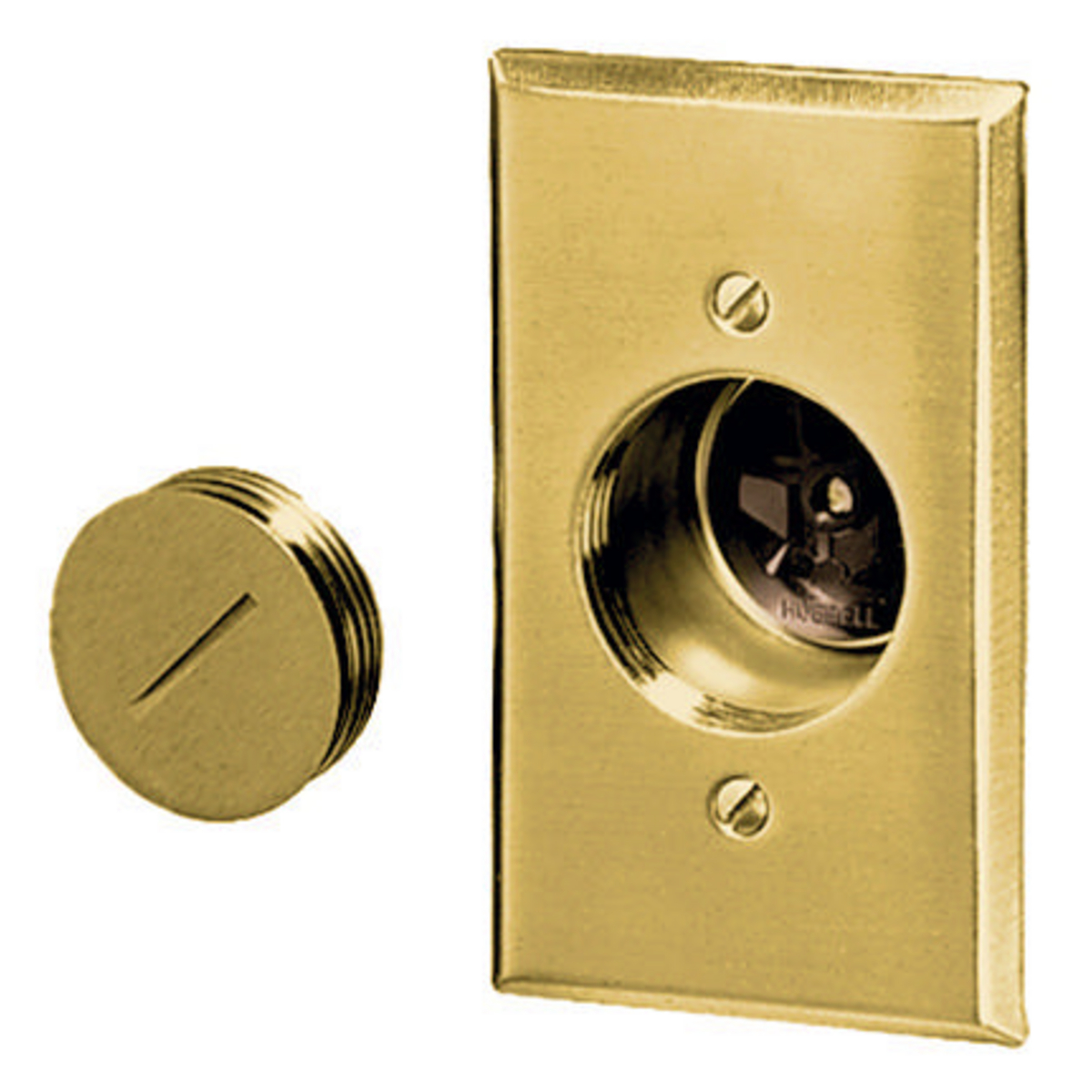

Hubbell Wiring Device-Kellems HBL5236 Single Outlet Grounding Display Type Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Locking Devices
26162
MFG #: HBL5236
Hubbell Wiring Device-Kellems
105.87000
/ ea
Hubbell® Straight Blade Receptacle, Single Outlet Grounding Display Type, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, -40 to 75 deg C, Back Wired Terminal, Phenolic, Brown, 4-1/2 in W x 2-3/4 in D
- Catalog URL - Wiring_Device_Kellems_HBL5235_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_F5ML4DEZUP7H29C6.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666024114.pdf(Install Instructions URL)
- Line Drawing URL - 11456_CPLEXZJDBWUSMQF2.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_X3IZTRSYGP8LV5B2.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL5236_M11523_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Commercial Specification Grade |
| Display Case Receptacle |
| Traditional face shape |
| #8 to 32 brass/nickel plated for neutral terminal screw |
| #8 to 32 brass, multiple drive (green) ground screw |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL 498 (brass, white, green) |
| Certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Steel-zinc plated mounting screw |
| Ratings are a permanent part of the device |
| UL 94 V2 flammability |
| Phenolic top and base |
| 0.032 in brass power contacts |
