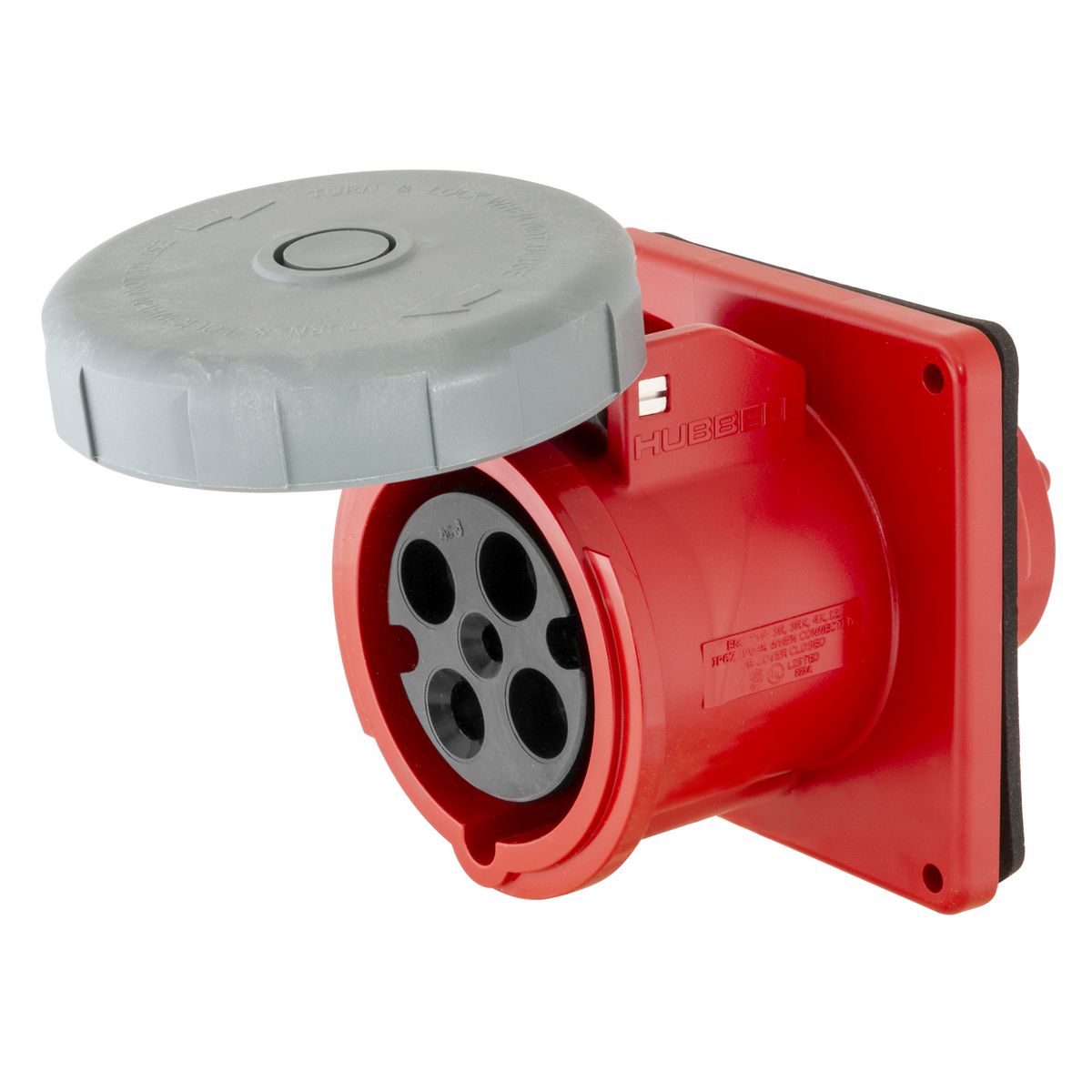

Hubbell Wiring Device-Kellems HBL430R7W Grounding Single Flanged Watertight Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Pin & Sleeve
27000
MFG #: HBL430R7W
Hubbell Wiring Device-Kellems
344.33000
/ ea
- Full Eng Drawing URL - Kellems_HBL430R9V0_Technical_Drawing.pdf(Full Eng Drawing URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_7QM6IJ9F3ODNZKB8.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1487177529919.pdf(Install Instructions URL)
- Line Drawing URL - 11456_40UYGHVLMNX6SWBK.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_KBF2C5TSGU0H1NWE.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL430R7W_M13317_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| High Ampacity Watertight Connections |
| Watertight |
| 12 to 8 AWG copper wire terminal accommodation |
| 600 VAC maximum working voltage |
| 3000 VAC minimum dielectric withstand voltage |
| Watertight per IEC 60309-1 moisture resistance |
| Polycarbonate rotating sealing disc, brass ground/phase sleeve, beryllium copper multi-contact insert with silver plating pin/sleeve spring, high impact thermoset contact carrier and retainer material |
| Maximum 30 deg c temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| 5000 connect and disconnect cycles with load for 16A and 20A, 1000 cycles with load and 1000 cycles without load for 30A, 32A, 60A and 63A, and 250 cycles with load and 250 cycles without load for 100A and 125A endurance |
| Watertight per IEC 60309-1 moisture resistance |
