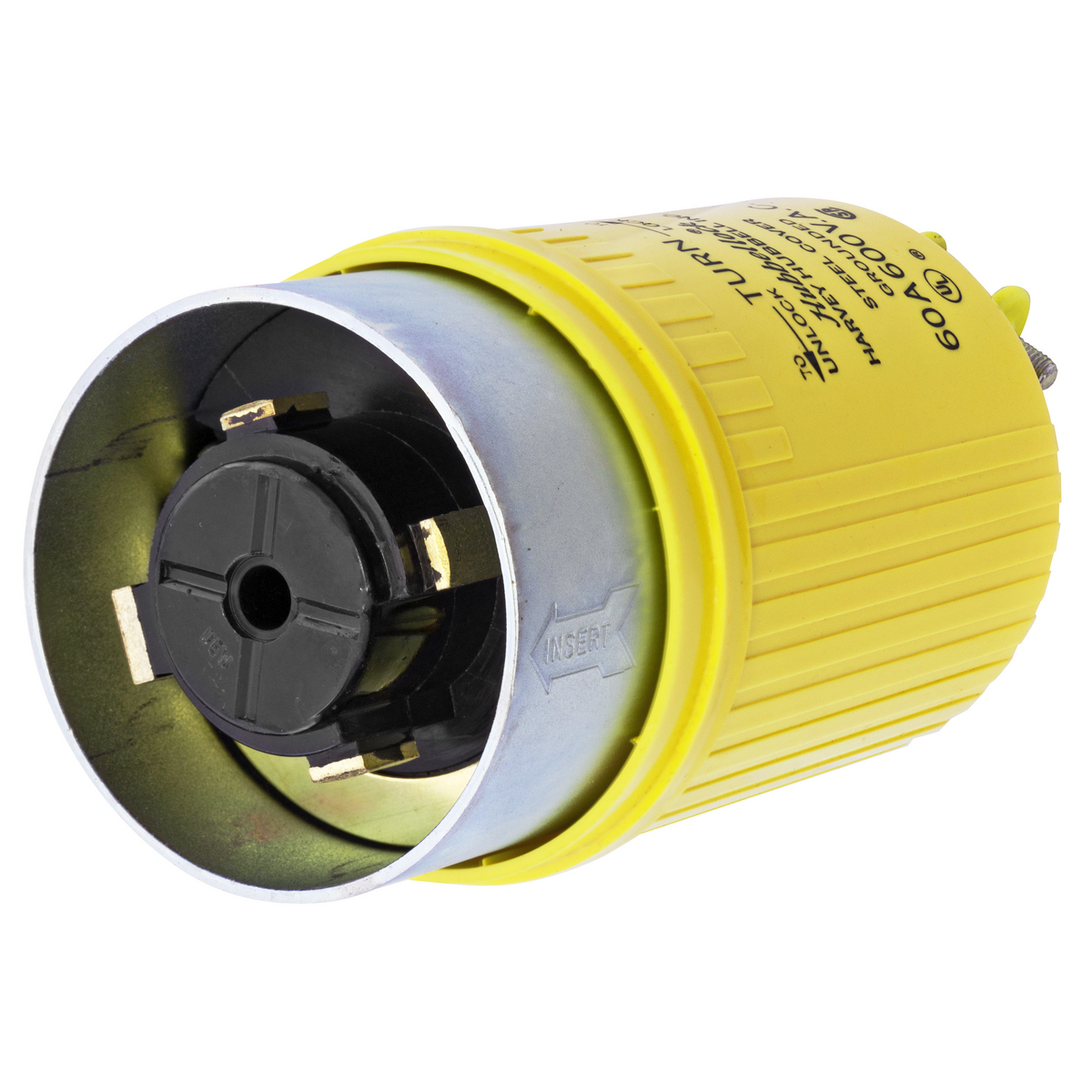

Hubbell Wiring Device-Kellems HBL26419 Heavy Duty Locking Plug, 600 VAC, 60 A, 3 Poles, 4 Wires, Yellow
Locking Devices
26240
MFG #: HBL26419
Hubbell Wiring Device-Kellems
611.22000
/ ea
Hubbell® Locking Plug, Heavy Duty, 600 VAC, 60 A, 3 Poles, 4 Wires, Industrial Grade, IP30 Enclosure, 0.875 to 1.48 in Cord Dia, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 3.03 in Dia x 4.81 in L
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_DLVU92AO58QXB6MR.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1209_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666337049.pdf(Install Instructions URL)
- Line Drawing URL - 11456_IMJTX5CP9VGZNSF8.pdf(Line Drawing URL)
- Line Drawing URL - WIRING_M4433_SALESDRAWING.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_4GM0JFWTSINE257K.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL26419_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1487175145732.pdf(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Auto Ejects Improperly Made Connection |
| Withstands 2000 VAC dielectric voltage |
| 10 to 4 AWG wire |
| 8 to 4 AWG stranded copper wire terminal accommodation |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| Terminals identified in accordance with UL 498 |
| Zinc plated steel terminal screws |
| Black thermoset nylon blade holder and neoprene sleeve cord clamp |
| Molded-in male contacts are resistant to damage and provide a consistently positive connection |
| Insulated, color coded metallic housing enhances safety and abuse resistance |
| Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability |
| Indoor dry unless protected by additional means |
